VW Crafter Battery Location Step-by-Step Guide

The VW Crafter battery location is a crucial aspect of vehicle maintenance that often causes confusion among owners and mechanics alike. Understanding where to find the battery in this popular commercial van can save time and frustration when it comes to routine checks or emergency replacements. The battery’s position can vary depending on the model year and specific configuration of the VW Crafter, making it essential to have accurate information at hand. Source

This guide aims to provide a comprehensive overview of the VW Crafter battery location, covering various models including those from 2022. It will walk readers through the process of locating the battery compartment, accessing the battery, and safely disconnecting and removing the old unit. Additionally, it will touch on important considerations such as voltage requirements and the use of AGM batteries in certain Crafter models. By the end of this article, readers will have a clear understanding of how to handle their VW Crafter’s battery with confidence. See VW Crafter Deals

Locating the Battery Compartment VW Crafter Battery Location

Finding the battery in a VW Crafter can be a bit tricky, as its location varies depending on the model year and configuration. In most cases, the battery is not found under the bonnet as one might expect. Instead, it is typically situated in a less obvious spot. See all VW Crafter For sale

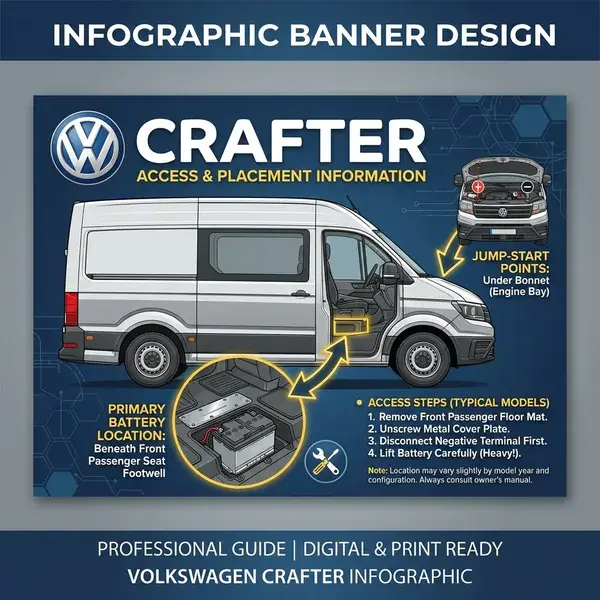

Under the Passenger Seat VW Crafter battery location

For many VW Crafter models, including some 2018 versions, the battery is located under the passenger seat. This placement has several advantages, such as easy access to the wiring and efficient use of space. In some configurations, there might even be two batteries – one under the driver’s seat and another under the passenger seat. These are often connected to a split charge system, which allows for charging from both the main battery when the vehicle is in motion and a solar panel when parked. See all VW Crafter lease deals

Removing Floor Panels VW Crafter Battery Location

In certain VW Crafter models, the battery is hidden beneath the floor panels. To access it, one needs to remove these panels carefully. Here’s a general process: See VW Crafter Camper

• First, locate the floor panels in front of the passenger seat. • Look for three bolts with T20 Torx heads securing the first panel. • Remove these bolts using the appropriate Torx screwdriver. • Once the first panel is off, you may need to remove additional floor pieces. • Some parts might simply lift out without any bolts, while others may require further dismantling. • After removing the floor panels, you might encounter a polystyrene piece that needs to be slid out. • Beneath this, you’ll find a metal plate secured by four T30 Torx screw bolts. • Remove these bolts to reveal the battery compartment. See VW Crafter Dimensions

It’s worth noting that removing these floor panels can be challenging, especially in older vehicles where the screws may have become stiff over time. Some van owners have reported difficulties with stubborn Torx screws and have had to resort to alternative methods, such as using a flathead screwdriver or even a Stanley blade scraper to clean off accumulated grime. See VW crafter alloy wheels

Safety Precautions VW Crafter Battery Location

When dealing with the VW Crafter battery location, it’s crucial to take proper safety measures:

• Always disconnect the negative terminal first when removing the battery. This prevents short circuits and potential electric shocks. • Be cautious when lifting the battery, as it can weigh around 26 kilos. Lift it straight up and out of the van to avoid damage to the battery or its casing. • If your VW Crafter has a start/stop system, ensure that any replacement battery is compatible with this technology to prevent premature wear. • Remember that batteries contain lead and other hazardous materials. They must be recycled properly and cannot be disposed of in regular waste bins. • When working on the floor panels or battery compartment, be mindful of the vehicle’s electronic systems. These systems may continue to draw power even when the engine is off, potentially draining the battery if left unchecked for extended periods. see VW Crafter Finance

By following these steps and precautions, you can safely locate and access the battery in your VW Crafter. Whether it’s for routine maintenance, voltage checks, or replacing an AGM battery, knowing the exact battery location in your specific model will save time and effort. See VW Crafter Motorhomes See VW Crafter for sale

Accessing the Battery

Once the VW Crafter Battery Location compartment has been located, the next step is to gain access to the battery itself. This process involves removing various covers and insulation, which can be a bit tricky if one is not familiar with the VW Crafter’s design. It’s crucial to approach this task methodically to avoid damaging any components. See VW Crafter lease

Required Tools

To access the VW Crafter battery location, one will need a set of specific tools. These include:

• A Torx screwdriver set, particularly T20 and T30 sizes • A 10mm socket wrench • A 13mm socket wrench • A ratchet with an extension • A flathead screwdriver or Stanley blade scraper (for stubborn dirt) • A pen (for marking purposes) • A terminal wire brush • Battery terminal protector spray

It’s advisable to have all these tools ready before starting the process to ensure a smooth operation. The Torx screwdrivers are essential for removing the floor panels and metal plate covering the battery. The socket wrenches are needed for loosening the battery terminals and tie-down bolts. See new VW Crafter

Removing Covers and Insulation VW Crafter battery location

The process of removing covers and insulation to access the VW Crafter battery location involves several steps: See VW Crafter Seat Covers

1. Floor Panel Removal VW Crafter Battery Location: • Locate the three T20 Torx bolts securing the first floor panel in front of the passenger seat. • Carefully unscrew these bolts and set them aside. • Lift the first panel off.
2. Additional Floor Pieces VW Crafter Battery Location: • Some floor pieces may simply lift out without any bolts. • Others might require further dismantling. • Push down and rotate 90 degrees to pop up certain sections.
3. Polystyrene Insulation VW Crafter Battery Location: • After removing the floor panels, you’ll encounter a polystyrene piece. • Slide this out carefully from the front.
4. Metal Plate Removal VW Crafter Battery Location: • Beneath the polystyrene, you’ll find a metal plate secured by four T30 Torx screw bolts. • Remove these bolts to reveal the battery compartment.
5. Battery Cover: • Some models may have an additional plastic cover directly on top of the battery. • Remove this cover to fully expose the battery.

It’s important to note that older vehicles might present challenges due to accumulated dirt and grime. In such cases, a Stanley blade scraper or flathead screwdriver might be necessary to clean off stubborn residue before removing bolts.

Once these steps are completed, the VW Crafter battery should be fully visible and accessible. At this point, one can proceed with disconnecting the battery terminals. Remember to always disconnect the negative terminal first to prevent short circuits.

When accessing the battery for VW Crafter Battery Location, it’s crucial to be mindful of the vehicle’s electronic systems. These systems may continue to draw power even when the engine is off, potentially draining the battery if left unchecked for extended periods. Therefore, it’s advisable to work efficiently and not leave the battery exposed for longer than necessary.

For those dealing with a VW Crafter battery location in 2022 models or newer, the process might vary slightly. However, the general principles of locating the battery under the passenger seat or floor panels, and carefully removing covers and insulation, remain consistent across most models.

By following these steps and using the correct tools, one can safely access the VW Crafter battery for maintenance, voltage checks, or replacement of an AGM battery. This knowledge is invaluable for both DIY enthusiasts and professional mechanics working on these popular commercial vans.

Disconnecting and Removing the Old Battery

Once the VW Crafter battery location has been identified and accessed, the next step is to safely disconnect and remove the old battery. This process requires careful attention to detail and adherence to proper safety protocols to avoid any potential hazards.

Safety First: Disconnecting Terminals VW Crafter battery location

Before beginning the disconnection process for VW Crafter Battery Location, it’s crucial to prioritise safety. One should wear protective gear such as safety glasses and rubber gloves to guard against potential acid splashes or electrical shocks. It’s also essential to turn off the ignition and remove the key from the vehicle to prevent any accidental starts during the procedure.

When disconnecting the terminals, it’s vital to remember the correct order. Always start with the negative terminal, which is typically marked with a ‘-‘ symbol and often has a black cap. This approach minimises the risk of electrical shock or sparks. To disconnect the negative terminal:

• Locate the 10mm bolt securing the negative terminal clamp. • Use a 10mm socket wrench to loosen this bolt. • Carefully wiggle the clamp to remove it from the terminal. • Wrap the disconnected terminal in a rag to prevent accidental contact.

After safely disconnecting the negative terminal, proceed to the positive terminal, marked with a ‘+’ symbol and often covered by a red cap. Follow the same process to disconnect the positive terminal, being cautious not to let the wrench touch any metal parts of the van to avoid short circuits. See all VW Crafter 4×4

Unfastening Battery Restraints VW Crafter battery location

With both terminals disconnected, the next step is to remove the battery hold-down clamp. This device secures the battery in place and prevents it from moving during vehicle operation. In the VW Crafter, this clamp is typically located near the battery tray. See VW Crafter camper

To remove the hold-down clamp:

• Locate the two 10mm bolts on either side of the battery handle. • Use a long extension on your socket wrench to reach these bolts. • Carefully loosen and remove both bolts. • If the bolts are difficult to retrieve, a magnet can be helpful to lift them out. See VW Crafter 4motion

Once the hold-down clamp is removed, the battery should be free to lift out of its compartment. However, before attempting to remove the battery, it’s crucial to ensure all connexions and restraints have been fully released to avoid damaging the battery or the surrounding components.

Proper Lifting Techniques

Removing a VW Crafter battery requires careful handling due to its substantial weight. The battery typically weighs around 26 kilos, making it a potentially hazardous item to lift if not done correctly. To safely remove the battery:

• Position yourself with a stable stance, feet shoulder-width apart. • Bend at the knees, keeping your back straight. • Grip the battery firmly using the built-in handles. • Lift straight up, using your leg muscles rather than your back. • Avoid twisting or turning while holding the battery. • Move the battery straight out of the van without wiggling or tilting it. See all VW Crafter vans for sale

It’s important to note that AGM batteries, which are common in many VW Crafter models, are particularly sensitive to tilting. Keeping the battery level during removal helps prevent any potential acid leakage or damage to the internal components.

By following these steps, one can safely disconnect and remove the old battery from a VW Crafter. This process is crucial whether one is performing routine maintenance, checking the battery voltage, or replacing an AGM battery. Remember, if at any point during this procedure one feels unsure or encounters difficulties, it’s advisable to seek assistance from a professional mechanic familiar with the VW Crafter battery location and removal process. VW Crafter MWB

Conclusion

Locating and accessing the battery in a VW Crafter can be a bit tricky, but with the right knowledge and tools, it becomes a manageable task. This guide has walked through the process of finding the battery compartment, removing covers and insulation, and safely disconnecting and removing the old battery. By following these steps, VW Crafter owners can save time and effort when it comes to battery maintenance or replacement. See VW Crafter alloy wheels

Understanding the VW Crafter battery location has a significant impact on vehicle maintenance and emergency situations. Whether you’re dealing with a 2022 model or an older version, knowing where to find and how to access the battery is crucial for keeping your van in top shape. Remember, safety should always come first when working with vehicle batteries, so don’t hesitate to seek professional help if you’re unsure about any part of the process. See all VW Crafter for sale

FAQs VW Crafter battery location

How do I remove the battery from a VW Crafter?
To remove the battery from a VW Crafter, you will need to locate the battery compartment under the passenger seat, remove the necessary floor panels, and follow safety protocols before disconnecting and lifting out the old battery. See VW Crafter finance

Where can I find the battery in a VW campervan?
In most VW campervans, the battery is positioned either underneath the passenger seat or under the driver’s seat.

Do Volkswagen vehicles require a specific type of battery?
Yes, Volkswagen vehicles are designed to use genuine VW batteries that are tailor-made to meet the performance requirements of these luxury vehicles.

What type of battery is used in a VW Up?
The VW Up utilises a specific model of battery suited to its compact design and electrical needs. Ensure to consult your vehicle’s manual or a Volkswagen dealer for the exact battery type.
