VW Crafter Dimensions : What You Need

The Volkswagen Crafter stands out as a versatile commercial vehicle, known for its impressive dimensions and cargo capacity. Understanding the VW Crafter dimensions is crucial for businesses and individuals looking to maximize their transportation needs. From the compact short wheelbase (SWB) to the spacious long wheelbase (LWB) models, the Crafter offers a range of sizes to suit various applications. Source

This comprehensive guide delves into the various aspects of VW Crafter dimensions, including exterior measurements, interior cargo space, and door openings. It explores the differences between SWB, MWB (medium wheelbase), and LWB variants, as well as their respective heights and widths. The article also covers payload capacities, towing capabilities, and how these dimensions have evolved across different model years from 2013 to 2021. The most popular way to buy is with a VW Crafter Lease. By the end, readers will have a clear understanding of the Crafter’s size options and how to choose the right model for their specific needs. See all VW Crafter for sale

Overview of VW Crafter Models VW Crafter Dimensions

The Volkswagen Crafter, a versatile Volkswagen commercial vehicle, offers a wide range of options to suit various business needs. Launched in 2016 and available in the UK from 2017, the second-generation Crafter stands out for its ground-up redesign. This model comes with an impressive array of choices, including three diesel power outputs, manual and automatic gearbox options, three lengths, three roof heights, and a selection of drivetrain configurations. Even a VW Crafter 4×4 is made now.

Short Wheelbase (SWB)

The Short Wheelbase Crafter  from VW Vans is designed for those who need a compact yet capable van. Here are its key features:

• Wheelbase length: 3,640mm
• Body length: 5,986mm (also known as L3 or Medium)
• Maximum load length: 3,450mm
• Roof height options:
  • Low: 2,355mm
  • High: 2,590mm
• Load volume:
  • Low roof: 9.9 cubic meters
  • High roof: 11.3 cubic meters

Medium Wheelbase (MWB)

The Medium Wheelbase Crafter offers a balance between compact size and increased capacity. While specific details for the MWB are not provided in the given information, it typically falls between the SWB and LWB in terms of dimensions and capacity. The MWB version is used for making the VW Crafter Tipper

Long Wheelbase (LWB)

The Long Wheelbase Crafter provides significantly more space for businesses with larger transportation needs. It comes in two body length options:

1. Long (L4):
   • Body length: 6,836mm
   • Maximum load length: 4,300mm
   • Roof height options:
     • High: 2,590mm
     • Super-High: 2,798mm
   • Load volume:
     • High roof: 14.4 cubic meters
     • Super-High roof: 16.1 cubic meters
2. Maxi / Long-Plus (L5):
   • Body length: 7,391mm
   • Maximum load length: 4,855mm
   • Roof height options:
     • High: 2,590mm
     • Super-High: 2,798mm
   • Load volume:
     • High roof: 16.4 cubic meters
     • Super-High roof: 18.4 cubic meters

Maxi VW Crafter Dimensions

The Maxi variant of the VW Crafter offers the largest capacity in the range. It shares many characteristics with the Long-Plus (L5) model, including:

• Body length: 7,391mm
• Super-High roof option
• Maximum load volume: 18.4 cubic meters (with Super-High roof)

Across all variants, the Crafter offers impressive load-carrying capabilities. The maximum load width is 1,832mm on all versions, with 1,380mm between the rear wheel arches. This allows for efficient use of space, with MWB models accommodating four Euro pallets and long models comfortably carrying six Euro pallets.

The Crafter’s engine options include four 2.0-liter TDI turbodiesel engines with varying power outputs:

1. 102hp / 300Nm single-turbo (limited to front-wheel drive variants)
2. 122hp / 300Nm single-turbo (available only on rear-wheel drive CR50 5.0-ton gross vehicle weight versions with twin rear wheels)
3. 140hp / 340Nm single-turbo
4. 177hp / 410Nm twin-turbo

These engine options are paired with either manual or automatic transmissions, and the Crafter is available in front-wheel drive, rear-wheel drive, or 4Motion four-wheel drive configurations. This variety allows businesses to choose the most suitable combination for their specific needs, whether it’s urban deliveries, long-haul transport, or off-road capabilities.

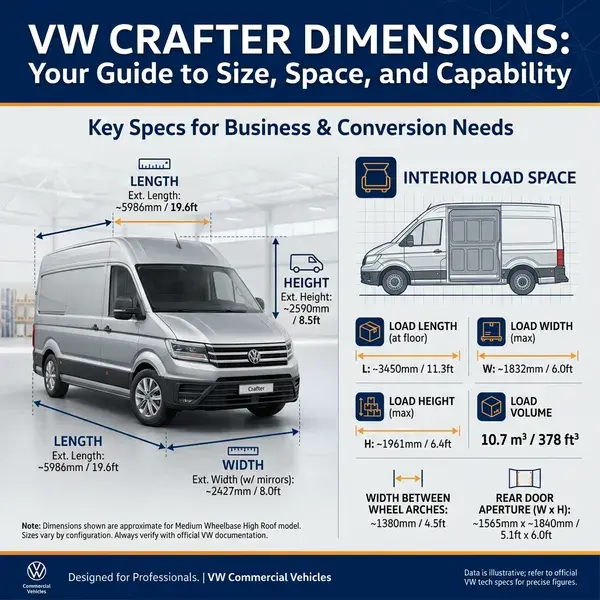

Exterior Dimensions VW Crafter Dimensions

The Volkswagen Crafter’s exterior dimensions are designed to accommodate a wide range of business needs. With three choices of height and three choices of length, the Crafter offers six customizable options to suit various applications. These dimensions play a crucial role in determining the van’s capacity and suitability for different tasks.

Length

The VW Crafter’s length varies significantly across its different models:

• Medium Wheelbase (MWB): This is the shortest version, measuring 5,986mm from bumper to bumper. Despite its compact size, it still offers ample load space with a minimum bed length of 3,450mm.
• Long Wheelbase (LWB): The LWB model extends to 6,836mm in length, providing a more spacious interior. The LWB is used in the VW Crafter Luton and the VW Crafter Camper
• Maxi: As the longest variant, the Maxi stretches to an impressive 7,391mm, offering maximum cargo capacity.

The length range of the Crafter spans from 5,968mm to 7,319mm, allowing businesses to choose the most suitable size for their specific requirements.

Width

The width of the VW Crafter ranges from 2,033mm to 2,100mm, depending on the specific model. This generous width contributes to the van’s stability and spacious interior. The maximum load width is consistent across all versions at 1,832mm, with 1,380mm available between the rear wheel arches. This configuration allows for efficient use of space, enabling the MWB models to accommodate four Euro pallets, while the long models can comfortably carry six.

Height

The Crafter’s height is one of its most versatile features, with options ranging from 2,305mm to 3,200mm. This variety allows businesses to choose a height that best suits their cargo needs and storage facilities. The height options include:

• Low roof: 2,355mm
• High roof: 2,590mm
• Super-high roof: 2,798mm

To maximize the use of the Crafter’s height, especially in taller models, businesses can consider installing a false van floor storage system mounted by customized van racking. This modification enables the utilization of storage space in the roof area that might otherwise go unused.

Wheelbase VW Crafter Dimensions

The wheelbase of the VW Crafter plays a significant role in its overall dimensions and handling characteristics. While specific wheelbase measurements for all variants are not provided, the available information indicates:

• The shortest wheelbase (likely for the MWB model) is 3,640mm
• The longest wheelbase (for the Maxi model) is approximately 4,490mm

These varying wheelbases contribute to the Crafter’s adaptability, allowing it to maintain maneuverability in shorter versions while providing increased stability and load capacity in longer variants.

The VW Crafter’s diverse range of exterior dimensions makes it a versatile choice for businesses with varying transportation needs. From the compact MWB model to the spacious Maxi variant, the Crafter offers options to suit different operational requirements. The combination of length, width, height, and wheelbase options allows for customization, ensuring that businesses can find a configuration that aligns with their specific cargo volume and payload needs. Whether it’s urban deliveries requiring a more maneuverable van or long-haul transport demanding maximum cargo space, the Crafter’s exterior dimensions are designed to meet the demands of modern businesses efficiently.See all VW vans for sale

Interior Cargo Space VW Crafter Dimensions

The Volkswagen Crafter’s interior cargo space is designed to meet the diverse needs of modern businesses. With its versatile dimensions and customizable options, the Crafter offers a range of solutions for various transportation requirements.

Load Length

The VW Crafter lease deals provides generous load lengths to accommodate different cargo sizes. The minimum bed length starts at 3,450mm, which is suitable for many standard transportation needs. However, the load length varies depending on the model:

• Medium Wheelbase (MWB) models: Maximum load length of 3,450mm
• Long Wheelbase (LWB) models:
  • Long (L4): Maximum load length of 4,300mm
  • Maxi / Long-Plus (L5): Maximum load length of 4,855mm

This range of load lengths allows businesses to choose the most appropriate size for their specific cargo requirements, from compact deliveries to long-haul transportation.

Load Width

The Crafter’s load width is consistent across all versions, providing ample space for various cargo types. Key dimensions include:

• Maximum load width: 1,832mm
• Width between rear wheel arches: 1,380mm

This generous width allows for efficient loading and organization of cargo. The MWB models can accommodate four Euro pallets, while the long models have enough space to comfortably carry six Euro pallets. This feature makes the Crafter particularly suitable for businesses that frequently transport standardized cargo units.

Load Height

The VW Crafter offers three roof height options, allowing businesses to maximize vertical space according to their needs:

1. Low roof: 1,650mm internal height
2. High roof: 1,940mm internal height
3. Super-high roof: 2,140mm internal height

To make the best use of the Crafter’s height, especially in taller models, businesses can consider installing a false van floor storage system mounted by customized van racking. This modification enables the utilization of storage space in the roof area that might otherwise go unused, further increasing the van’s versatility.

Load Volume

The Crafter’s load volume varies significantly depending on the combination of length and roof height:

• Standard roof height models: 14.4 cubic meters
• Super-high roof models: 16.1 cubic meters
• VW Crafter Maxi models with super-high roof: 18.4 cubic meters

For a more detailed breakdown:

1. Short Wheelbase (SWB) models:
   • Low roof: 9.9 cubic meters
   • High roof: 11.3 cubic meters
2. Long Wheelbase (LWB) models:
   • Long (L4) with high roof: 14.4 cubic meters
   • Long (L4) with super-high roof: 16.1 cubic meters
   • Maxi / Long-Plus (L5) with high roof: 16.4 cubic meters
   • Maxi / Long-Plus (L5) with super-high roof: 18.4 cubic meters

These varying load volumes cater to a wide range of business needs, from small-scale deliveries to large-capacity transportation requirements.

The VW Crafter also offers additional convenience features for the load area. These include bright integrated lighting and a Universal Load Floor designed to accept many existing types of racking. Lashing rails for the floor, sides, ceiling, and bulkhead are available, providing excellent quality and adaptability for securing cargo.

It’s worth noting that front-wheel drive (FWD) models have a new rear axle design that puts the load floor 100mm lower than rear-wheel drive (RWD) and 4Motion four-wheel drive (4WD) models. This gives FWD Crafter vans a nominal rear sill height of 570mm, reducing the step-in height for operators accessing the load area and potentially making loading and unloading easier.

The VW Crafter’s interior cargo space dimensions are designed to transport heavier payloads efficiently. With its flexible and economical range of models, the Crafter is capable of meeting the demands of various businesses, making it a top choice for those looking to invest in a medium or large cargo van. See all VW van lease deals

Door Dimensions

The dimensions of the doors on the Volkswagen Crafter play a crucial role in its functionality and accessibility. These measurements impact the overall usability of the vehicle, especially when it comes to loading and unloading cargo. The Crafter features both side loading doors and rear doors, each with its own set of dimensions designed to maximize efficiency and ease of use.

Side Loading Door

The side loading door of the VW Crafter is a standout feature, offering impressive dimensions that facilitate easy access to the cargo area. This door type is particularly useful in situations where space is limited, such as in tight parking spots or narrow loading bays.

The width of the side door opening is a consistent 1,311mm across all Crafter models. This generous width allows for the loading of large items and provides ample space for workers to move in and out of the van comfortably. It’s worth noting that the sheer size of this opening can sometimes make it challenging to close the door properly on the first attempt, a minor inconvenience that speaks to its substantial dimensions.

The height of the side door opening varies depending on the roof configuration of the Crafter:

• Standard roof models: 1,587mm
• High roof models: 1,722mm
• Super-high roof models: 1,822mm

This range of heights ensures that the side loading door can accommodate various cargo sizes and types, from standard packages to taller items that require more vertical clearance.

Rear Door

The rear doors of the VW Crafter are designed to provide maximum access to the cargo area from the back of the vehicle. These doors are essential for loading larger items or when using forklifts and other machinery to load and unload cargo.

The width of the rear door opening is consistent across all Crafter models at 1,522mm. This width is slightly larger than that of the side loading door, offering even more space for wide or bulky items.

Similar to the side loading door, the height of the rear door opening varies based on the roof configuration:

• Standard roof models: 1,605mm
• High roof models: 1,740mm
• Super-high roof models: 1,840mm

These heights correspond closely to those of the side loading door, ensuring consistency in loading capabilities regardless of which door is used.

An important feature of the rear doors is their opening angle. On the Trendline models, the rear doors can open up to 270 degrees as standard. This wide opening angle allows the doors to fold almost flat against the sides of the van, maximizing access to the cargo area and minimizing obstructions during loading and unloading. However, it’s important to note that on the Startline models, the rear doors open to 180 degrees, which still provides excellent access but may not be as convenient in some situations.

To summarize the door dimensions of the VW Crafter:

Door Type	Width (mm)	Height (mm)
Side Loading	1,311	1,587 – 1,822
Rear	1,522	1,605 – 1,840

These dimensions highlight the Crafter’s design focus on accessibility and versatility. The combination of wide openings and variable heights allows the vehicle to adapt to a wide range of cargo types and loading scenarios. Whether it’s through the side loading door or the rear doors, the VW Crafter ensures that businesses can efficiently manage their cargo handling needs, contributing to improved productivity and ease of use in various commercial applications.

Payload and Towing Capacity VW Crafter Dimensions

The Volkswagen Crafter’s payload and towing capacity are crucial factors for businesses considering this versatile commercial vehicle. These specifications determine the van’s ability to handle various loads and transport additional equipment, making them essential considerations for potential buyers.

Gross Vehicle Weight (GVW)

The VW Crafter offers three gross vehicle weight options, catering to different business needs:

1. CR30 models: 3.0 tons (3,000kg)
2. CR35 models: 3.5 tons (3,500kg)
3. CR50 models: 5.0 tons (5,000kg)

It’s important to note that the GVW represents the total maximum weight of the vehicle, including everything on board, such as cargo, passengers, and fuel. For drivers with a standard UK car license, the highest GVW they can legally operate is 3.5 tons.

Maximum Payload VW Crafter Dimensions

The Crafter’s payload capacity varies depending on the model and configuration. Here’s a breakdown of some payload options:

1. CR30 models (3,000kg GVW):
   • Gross Payload: 986kg
2. CR35 models (3,500kg GVW):
   • Gross Payload: 1,235kg to 1,369kg

The payload capacity is influenced by factors such as the drivetrain configuration:

• Front-wheel drive Crafters are the lightest, offering the highest payload ratings.
• Rear-wheel drive models weigh about 100kg more, reducing the payload by the same amount.
• Four-wheel drive versions weigh approximately 150kg more than front-wheel drive models, further decreasing the available payload.

For example, a 102hp front-wheel drive Medium length CR35 model in basic Startline specification has a maximum payload of 1,376kg (without the 75kg driver). This figure represents the best payload capacity without opting for the Low roof configuration. Volkswagen also offers a stripped-out version of this model, which increases the available payload to 1,531kg.

Towing Capacity VW Crafter Dimensions

The VW Crafter’s towing capacity is impressive, allowing businesses to transport additional equipment or materials when needed. Here are the key points regarding the Crafter’s towing capabilities:

1. Unbraked towing capacity:
   • All Volkswagen Crafter models can tow 750kg unbraked.
2. Braked towing capacity:
   • Front-wheel drive Crafters:
     • Most models are rated to tow 3,000kg (3.0 tons) braked.
     • The 102hp engine is limited to 2,500kg (2.5 tons) for safety reasons.
   • Rear-wheel drive Crafters:
     • Most models are rated to tow 3,500kg (3.5 tons) braked.
     • The 140hp engine is limited to 3,000kg (3.0 tons).
   • Four-wheel drive (4Motion) Crafters:
     • All models are rated to tow 3,000kg (3.0 tons) braked.

The towing capacity has evolved over the years:

Year	Minimum Braked Capacity	Maximum Braked Capacity
2024	2,500kg	3,500kg
2023	2,500kg	3,500kg
2022	2,500kg	3,500kg
2021	2,500kg	3,500kg
2020	2,000kg	3,500kg
2019	2,000kg	2,500kg
2018	2,500kg	2,500kg

It’s worth noting that the towing capacity can also be expressed in tons by dividing the kilogram figure by 1,000. For instance, 3,500kg is equivalent to 3.5 tons.

When considering the VW Crafter’s payload and towing capacity, businesses should carefully assess their specific needs. Factors such as the type of cargo, frequency of towing, and typical load weights should all be taken into account. Additionally, it’s crucial to consult the manufacturer or the owner’s manual to ensure that the specific Crafter model matches the towing and payload requirements for the intended use.

Conclusion VW Crafter Dimensions

The VW Crafter’s diverse range of dimensions and capabilities has a significant impact on its versatility in the commercial vehicle market. From its varied exterior measurements to its spacious interior cargo area and impressive door dimensions, the Crafter is designed to meet the needs of a wide array of businesses. Its payload and towing capacities further enhance its utility, allowing for the transportation of substantial loads and additional equipment.

To sum up, the Crafter’s thoughtful design and adaptable features make it a strong contender for businesses looking to optimize their transportation operations. Whether it’s urban deliveries, long-haul transport, or specialized cargo needs, the VW Crafter offers a solution to suit various requirements. This comprehensive overview of the Crafter’s dimensions and capabilities serves as a valuable resource to help businesses choose the right model to match their specific operational demands.

FAQs VW Crafter Dimensions

1. What are the various sizes available for the VW Crafter?
   The VW Crafter offers a range of sizes depending on the model variant selected. It is available in six different configurations, with heights ranging from 2305mm to 3200mm, widths from 2033mm to 2100mm, and lengths from 5968mm to 7319mm.
2. What are the dimensions of the VW Crafter for the 2024 model?
   For the 2024 VW Crafter, the dimensions vary by variant. The vehicle’s height ranges from 2305 mm to 3200 mm, its width from 2033 mm to 2100 mm, and its length spans from 5968 mm to 7319 mm.
3. Can you provide the dimensions for the 2017 VW Crafter?
   The 2017 VW Crafter comes in two variants, with lengths ranging from 5986mm to 6836mm, heights from 2355mm to 2590mm, and a consistent width of 2040mm.
4. How does the size of the VW Crafter compare to the Mercedes Sprinter?
   The VW Crafter generally offers greater length, with load lengths varying from 3,450mm to 4,855mm, compared to the Sprinter’s 2,607mm to 4,300mm. Although both models range from 3.0 to 5.0 tons in gross weight, the Sprinter’s smaller size allows it to carry a heavier load due to its lighter body.
