Where is the spare wheel located on a VW T4 Caravelle?

On the vast majority of VW T4 Caravelles sold in the UK, the spare wheel is not stored inside the vehicle at all. Instead, it sits in an underslung cradle bolted to the underside of the chassis, tucked up between the rear axle and the back bumper. Volkswagen chose this location to free up interior load space and to keep the spare out of the passenger cabin, which is particularly useful on a people carrier like the Caravelle where every seat and every centimetre of legroom counts.

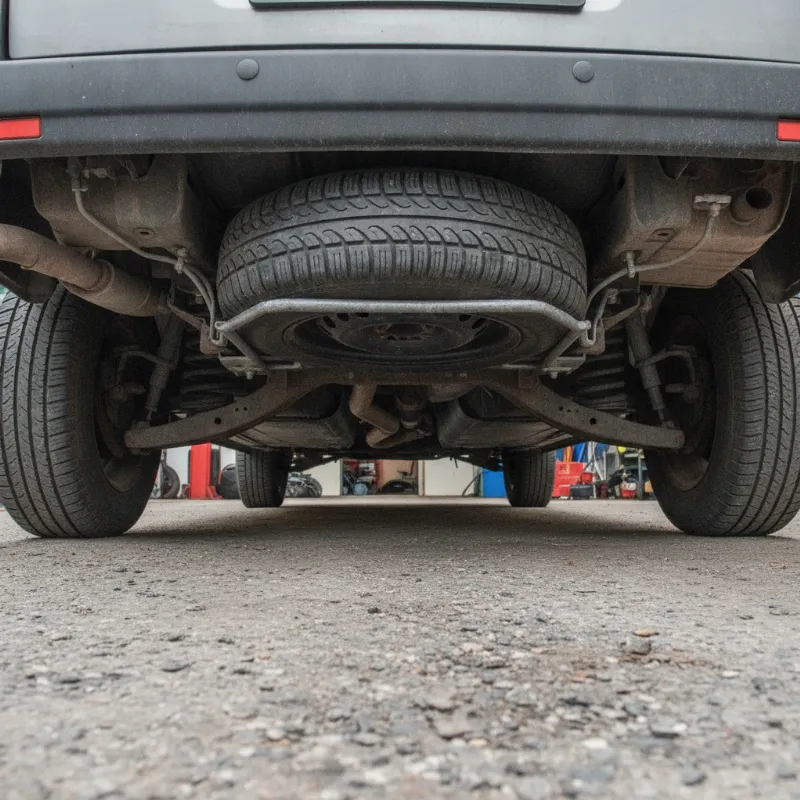

If you slide underneath the rear of the van and look up, you'll see a flat steel carrier plate suspended by a long threaded rod, with the spare wheel sandwiched between the plate and the chassis. The carrier is operated from above using a winding mechanism, so you don't need to lie on the floor to lower it — although you will need to reach under to guide the wheel out once it drops. On some later T4s and specific trim variants the spare can instead be found in a cage or bracket in the engine bay area, but the underslung setup is by far the most common configuration on Caravelle models.

How to access and lower the T4 Caravelle spare wheel

Accessing the spare on a T4 Caravelle is straightforward once you know where the winding point is, but it catches a lot of first-time owners out because the mechanism isn't especially obvious. The winder is operated from inside the rear of the vehicle, not from underneath, and it uses a long extension rod that passes through a small hole in the floor or rear panel down to the carrier bolt.

Tools you'll need

You'll need the original VW jack handle and wheel brace, which double up as the spare wheel winding tool — they slot together to make a long shaft with a square drive on the end. These usually live in a small compartment behind a trim panel in the boot area, along with the towing eye. If your Caravelle has changed hands a few times, there's a fair chance these tools have gone walkabout; a standard 17mm socket on a long extension bar will do the job in a pinch. It's also worth having a torch, a pair of gloves, and a rag handy, as the carrier bolt often collects road grime and salt spray.

Step-by-step: releasing the underslung carrier

Park on firm, level ground and apply the handbrake before you start. Open the tailgate and lift the boot floor covering to expose the small access hole in the rear crossmember or floor pan — this is where the winding rod passes through. Assemble the jack handle and wheel brace into a single tool, then feed it down through the hole until you feel it engage with the square drive on the carrier bolt.

Turn the tool anticlockwise. You should feel resistance as the mechanism starts to unwind, and after several turns the carrier plate will begin to drop away from the chassis. Keep winding steadily until the plate is fully lowered and the wheel is resting on the ground. At that point, reach underneath, tilt the wheel to disengage it from the retaining pin in the centre of the carrier, and slide it out towards the rear of the van. To refit, reverse the process — making sure the wheel is properly centred on the pin before winding it back up snugly against the chassis.

Common issues with the T4 spare wheel carrier (and how to fix them)

The biggest problem on any T4 of this age is corrosion. The carrier bolt lives directly in the firing line of road spray, and after twenty-plus UK winters it's not unusual for the whole assembly to be seized solid. If the winder won't budge, don't force it — a snapped bolt inside the chassis is a much bigger job than a stuck one. Soak the mechanism in penetrating fluid from below, leave it overnight, and try again with steady pressure rather than sudden force.

Another common issue is a spare wheel that drops but then refuses to detach because the retaining pin has rusted through the centre hole. Sometimes a firm tap with a rubber mallet is enough to free it; in more stubborn cases the whole carrier plate can be dropped as a unit and dealt with on the bench. If the winding cable or threaded rod itself is damaged, replacement carriers are still available from VW specialists and pattern part suppliers, and swapping one over is a job most competent DIYers can tackle in an afternoon. Once you've had it apart, a good clean, a smear of copper grease on the threads, and an annual check will keep everything working smoothly for years to come.

Looking for a newer Volkswagen Caravelle?

The T4 is a fantastic vehicle and there's a reason so many are still on UK roads, but if you're finding yourself wrestling with rusted underbody components more often than you'd like, it might be time to consider something more modern. Later Caravelles — the T5, T6 and T6.1 — retain the same practical people-carrier layout but bring huge improvements in refinement, safety, fuel economy and everyday usability, along with easier access to parts and servicing. If you'd like to see what's currently available, get in touch with our sales team and we'll happily talk you through the options and any Caravelles we have in stock.

FAQs

Where is the spare wheel located on a VW T4 Caravelle and how do you access it?
On most UK VW T4 Caravelles the spare wheel sits in an underslung carrier bolted beneath the rear of the chassis, between the back axle and the rear bumper. You access it by opening the tailgate, lifting the boot floor to reveal a small access hole, and feeding the jack handle and wheel brace (joined together) down through the hole to engage the winding bolt. Turning it anticlockwise lowers the carrier plate and wheel to the ground, where you can tilt it off the central retaining pin and slide it out.

Do I need any special tools to lower the T4 Caravelle spare wheel?
No special tools are strictly required. The original VW jack handle and wheel brace clip together to form the winding tool, and these normally live behind a trim panel in the boot. If the original tools are missing, a 17mm socket on a long extension bar will do the job. A torch, gloves and some penetrating fluid are also worth having, especially on an older van.

Why won't my T4 spare wheel winder turn?
Nine times out of ten it's corrosion. The carrier bolt and threaded rod are directly exposed to road spray and salt, so on older T4s the mechanism often seizes. Soak it with penetrating fluid from underneath, leave it overnight, and try again with steady even pressure. Never force it — a sheared bolt inside the chassis is a much larger repair than a stuck one.

Can the underslung spare wheel carrier be replaced?
Yes. Replacement carriers, winding cables and threaded rods are still readily available from VW specialists and aftermarket suppliers. The whole assembly can be dropped as a unit and swapped over on the bench, which is well within the scope of a competent home mechanic with axle stands and basic hand tools.

Is the spare wheel location the same on all T4 Caravelle models?
The underslung carrier is by far the most common setup on T4 Caravelles sold in the UK, but a small number of variants — particularly certain later or specification-specific models — carry the spare in a cage or bracket in the engine bay instead. If you can't find yours underneath, check under the bonnet area before assuming it's missing.
