Ford Transit Courier Dimensions

Ford Transit Courier Dimensions : Guide

The Ford Transit Courier Dimensions stands out as a compact yet capable van in the commercial vehicle market. Its dimensions play a crucial role in its functionality and appeal, making it a popular choice for businesses needing a versatile and efficient delivery vehicle. Understanding the Ford Transit Courier dimensions has a significant impact on potential buyers’ decision-making process, as it affects the van’s practicality for various tasks and its suitability for different work environments. Source

This comprehensive guide delves into the key aspects of the Ford Transit Courier’s size and capacity. It covers exterior measurements, load area dimensions, and cargo capacity to provide a clear picture of the van’s capabilities. The article also explores door dimensions, interior features, and other essential specifications such as weight, payload, fuel tank capacity, and wheel size. By examining these details, readers will gain valuable insights to help them determine if the Ford Transit Courier meets their specific needs and requirements. See Ford Transit Courier Sport

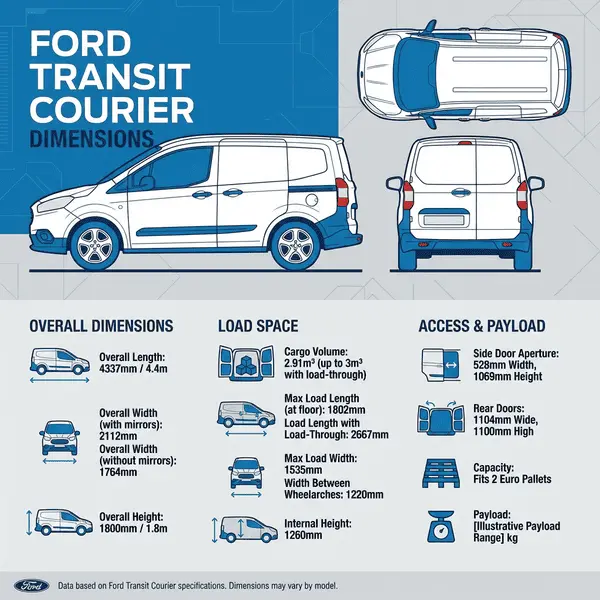

Exterior Ford Transit Courier Dimensions

The Ford Transit Courier Dimensions, despite its compact size, offers impressive dimensions that make it a versatile and practical choice for businesses. This section delves into the key exterior measurements of the vehicle, providing potential buyers with a clear understanding of its physical footprint. See all Ford Courier for sale

Overall Length Ford Transit Courier Dimensions

The Ford Transit Courier dimensions has an overall length of 4,157mm. This compact size allows the van to navigate through tight urban spaces with ease, making it ideal for city deliveries and businesses operating in congested areas. Despite its smaller stature, the Transit Courier still manages to offer twice the load volume of a typical car-based van, showcasing its efficient use of space. See Ford Transit Courier Lease

Width Ford Transit Courier Dimensions

The width of the Ford Transit Courier varies depending on the inclusion of mirrors:

Width without mirrors: 1,764mm
Width with mirrors folded: 1,991mm
Width with mirrors extended: 2,112mm

These measurements highlight the van’s Ford Transit Courier Dimensions adaptability to different parking and driving situations. The ability to fold the mirrors allows for easier maneuvering in tight spaces, while the extended mirror width provides excellent visibility when driving on open roads. See all Ford Transit Courier

Height

The Ford Transit Courier Dimensions stands at an overall height of 1,770mm in its unladen state. This measurement is taken without roof rails, which may be an optional feature on some models. It’s important to note that the actual height may decrease slightly as the payload increases, which is a common characteristic of commercial vehicles. See Ford E Transit Courier

Wheelbase Ford Transit Courier Dimensions

The wheelbase of the Ford Transit Courier dimensions measures 2,489mm. This substantial wheelbase for a compact van contributes to its stability and handling characteristics. It also plays a crucial role in determining the vehicle’s interior space and load capacity.

The exterior dimensions of the Ford Transit Courier Dimensions have a direct impact on its functionality and versatility. The compact overall length, combined with a well-designed width and height, allows this van to offer significant cargo capacity while maintaining maneuverability in urban environments. See Ford Transit Courier Price

For businesses considering the Ford Transit Courier Dimensionsr, these exterior dimensions translate into practical benefits. The van’s size makes it suitable for navigating narrow streets and fitting into standard parking spaces, which is particularly advantageous for delivery services or companies operating in densely populated areas.

Moreover, the width options with folded and extended mirrors provide flexibility for different driving scenarios. This feature enhances the van’s adaptability to various road conditions and parking situations, further cementing its reputation as a versatile commercial vehicle.

The height of the Transit Courier strikes a balance between providing ample interior space and maintaining a profile that doesn’t compromise on aerodynamics or accessibility. This design choice contributes to the van’s efficiency and ease of use in various commercial applications.

Lastly, the wheelbase of the Ford Transit Courier plays a crucial role in its overall performance and load-carrying capabilities. The 2,489mm wheelbase provides a stable platform for the vehicle, contributing to its handling characteristics and ride comfort. This measurement also has implications for the van’s turning circle, which is an important consideration for businesses that require agility in tight spaces. See all Ford Vans for sale

Load Area Dimensions

The Ford Transit Courier, despite its compact exterior, offers an impressive load area that sets it apart from other small vans in its class. This section examines the key dimensions of the cargo compartment, highlighting the van’s practical features and versatility. See all

Load Length Ford Transit Courier Dimensions

The Ford Transit Courier provides various load length options to accommodate different cargo needs:

Maximum load length at floor: 1,620mm
Load length at belt line: 1,358mm
Load length with folding bulkhead and fold-flat passenger seat: 2,593mm

The standard load length of 1,620mm at floor level offers ample space for most cargo requirements. However, the Transit Courier’s versatility shines through with its folding mesh bulkhead and fold-flat passenger seat feature. This configuration extends the load length to an impressive 2,593mm, allowing for the transportation of longer items when needed.

Load Width Ford Transit Courier Dimensions

The Transit Courier’s load width dimensions are as follows:

Maximum load width: 1,488mm
Width between the wheel arches: 1,012mm

The maximum load width of 1,488mm provides a spacious cargo area for wider items. Notably, the width between the wheel arches measures 1,012mm, which allows for the accommodation of a euro pallet. In theory, it might even be possible to fit a metric pallet width-wise, although this would be a tight fit.

Load Height Ford Transit Courier Dimensions

The load height dimensions of the Ford Transit Courier are:

Maximum load height: 1,244mm
Sill height (unladen): 564mm

With a maximum load height of 1,244mm, the Ford Transit Courier Dimensions offers substantial vertical space for taller cargo items. The relatively low sill height of 564mm, measured from the ground to the loadspace floor when the vehicle is unladen, facilitates easier loading and unloading of heavy or bulky items.

The Ford Transit Courier’s load area has been designed to maximize cargo capacity within its compact exterior dimensions. It offers a load volume of 1.9 cubic meters according to the VDA measurement standard, or 2.3 cubic meters using the SAE standard. For even greater versatility, models equipped with a flexible bulkhead can achieve a load volume of 2.4 cubic meters (VDA) or 2.6 cubic meters (SAE).

To enhance the functionality of the cargo area, the Transit Courier has DIN tie-down points on both sides of the compartment. These features allow for secure fastening of cargo, ensuring safe transportation of goods. Additionally, a bright LED load light has been installed to improve visibility within the cargo area, making it easier to load, unload, and organize items, especially in low-light conditions.

The rear door dimensions further contribute to the van’s practicality:

Rear door opening width: 1,104mm
Rear door opening height: 1,100mm

These generous rear door dimensions facilitate easy access to the cargo area, allowing for efficient loading and unloading of larger items.

The Transit Courier also features a side door, which adds to its versatility:

Side door opening width: 453mm (without bulkhead)
Side door opening width: 601mm (with bulkhead)

The side door provides an alternative access point to the cargo area, which can be particularly useful in tight spaces or when quick access to specific items is required.

Cargo Capacity

The Ford Transit Courier Dimensions, despite its compact size, offers impressive cargo capacity, making it a versatile choice for businesses with varying transportation needs. This section explores the van’s load volume, payload capacity, and towing capabilities.

Load Volume Ford Transit Courier Dimensions

The Ford Transit Courier has a standard load volume of 1.9 cubic meters when measured using the VDA (Verband der Automobilindustrie) standard, or 2.3 cubic meters according to the SAE (Society of Automotive Engineers) standard. This capacity has a significant impact on the van’s utility, offering twice the load volume of a typical car-based van.

For businesses requiring even more space, the Transit Courier provides additional flexibility. Models equipped with a folding mesh bulkhead and fold-flat passenger seat can increase the load volume to 2.4 cubic meters (VDA) or 2.6 cubic meters (SAE). This feature allows for the transportation of longer items when needed, extending the maximum load length from 1,620mm to an impressive 2,593mm.

Payload Capacity

The payload capacity of the Ford Transit Courier varies depending on the model year and specific configuration. For pre-2018 models, the maximum payload capacity reaches up to 660kg, although this figure can vary based on the model and fitted equipment.

More recent models, specifically those compliant with Euro 6.2 emissions standards (as of February 2020), have a slightly reduced payload capacity ranging from 519kg to 595kg. It’s important to note that the Transit Courier Kombi models have a lower payload rating of 468kg.

For businesses requiring higher payload capacities, Ford offers versions with an increased gross vehicle weight. This option boosts the payload by approximately 170kg for petrol models and 165kg for diesel models. As a result, the top possible payload reaches an impressive 849kg, significantly enhancing the van’s carrying capabilities.

Towing Capacity Ford Transit Courier Dimensions

The Ford Transit Courier’s towing capacity varies depending on the engine type and model year. For the latest diesel models, the maximum towing capacity is rated at 560kg. Petrol models offer slightly higher towing capabilities, with the ability to tow up to 650kg with an unbraked trailer and 850kg with a braked trailer.

More recent updates to the Transit Courier have further improved its towing capabilities. The latest petrol versions can now tow up to 1,000kg, while the diesel models have an increased capacity of 1,100kg. This enhancement in towing capacity adds to the van’s versatility, making it suitable for a wider range of commercial applications.

It’s worth noting that an electric version of the Transit Courier, the E-Transit, is expected to be introduced towards the end of 2024. This model will have a towing capacity of 750kg, offering an eco-friendly option for businesses looking to reduce their carbon footprint without significantly compromising on towing capabilities.

When considering towing with the Ford Transit Courier, it’s crucial to be aware of the nose weight specifications. The nose weight, which is the force exerted on the towball when a caravan or trailer is attached, has a minimum and maximum limit of 50 kg for both van and MPV models. Adhering to these limits has a significant impact on towing stability and safety.

Door Dimensions

The Ford Transit Courier’s door dimensions have a significant impact on its functionality and accessibility. These measurements play a crucial role in determining the van’s practicality for various commercial applications. This section examines the key dimensions of both the side and rear doors, highlighting their features and benefits.

Side Door Measurements Ford Transit Courier Dimensions

The Ford Transit Courier comes equipped with a sliding side door on the passenger side as a standard feature on Trend, Limited, and Sport models. This sliding door enhances the van’s versatility, allowing for easy access to the cargo area from the side. The side door opening width measures 453mm when the van has a bulkhead installed. However, without the bulkhead, this width increases to 601mm, providing even greater accessibility.

For businesses requiring additional flexibility, a second sliding door has an impact on the van’s functionality. This option is available on all trim levels except the base Leader trim. The addition of a second sliding door can significantly improve access to the cargo area, especially in tight spaces or when quick retrieval of specific items is necessary.

It’s worth noting that the most basic version of the Transit Courier does not come with a sliding side door as standard. In this case, users need to rely solely on the rear doors for access to the cargo area. This configuration may be suitable for businesses with specific needs or those looking for a more cost-effective option.

Rear Door Measurements

The rear doors of the Ford Transit Courier Dimensionshave been designed to maximize accessibility to the cargo area. The rear door opening width measures 1,104mm, providing ample space for loading and unloading larger items. This generous width allows for efficient handling of bulky cargo, pallets, or multiple smaller packages simultaneously.

Complementing the width, the rear door opening height stands at 1,100mm. This substantial height has an impact on the van’s ability to accommodate taller items, enhancing its versatility for various cargo types. The combination of the wide and tall rear door opening contributes to the Transit Courier’s competitive cargo space compared to other small vans in its class.

One of the standout features of the rear doors has an impact on the van’s practicality. The Transit Courier’s rear doors have a 180-degree opening capability. This feature allows the doors to swing wide open, providing unobstructed access to the cargo area. The 180-degree opening has a significant impact on loading and unloading efficiency, especially in tight spaces or when using forklifts or pallet jacks.

The rear door dimensions of the Ford Transit Courier have been carefully designed to strike a balance between accessibility and overall vehicle size. While maintaining a compact exterior, the van offers generous door openings that facilitate easy cargo handling. This thoughtful design has an impact on the van’s appeal to businesses that require a versatile and efficient delivery vehicle.

In conclusion, the door dimensions of the Ford Transit Courier contribute significantly to its functionality as a commercial vehicle. The combination of a sliding side door and wide-opening rear doors provides users with multiple access points to the cargo area. These features, along with the van’s compact size, make the Transit Courier a practical choice for businesses operating in urban environments or those requiring frequent loading and unloading of goods.

Interior Features

The Ford Transit Courier’s interior has been designed with functionality and practicality in mind, offering a range of features that enhance its versatility as a commercial vehicle. These features have a significant impact on the van’s ability to accommodate various cargo types and secure loads effectively.

Bulkhead Options

The Transit Courier comes equipped with a bulkhead as standard, which separates the cargo area from the cabin. This feature has an impact on both safety and functionality. It protects the driver and passenger from shifting cargo during transport and helps maintain a comfortable cabin environment. The bulkhead also has an impact on the side door opening width. With the bulkhead installed, the side door opening measures 453mm. However, without the bulkhead, this width increases to 601mm, providing greater accessibility to the cargo area.

For businesses requiring additional flexibility, Ford offers a folding mesh bulkhead option. This feature, when combined with a fold-flat passenger seat, allows for an extended load length of up to 2,593mm. This configuration has a significant impact on the van’s ability to transport longer items when needed, effectively increasing its versatility.

Tie-Down Points

To ensure secure transportation of goods, the Ford Transit Courier has DIN tie-down points installed on both sides of the cargo compartment. These tie-down points have a crucial impact on load retention, allowing drivers to safely secure cargo and prevent shifting during transit. The strategic placement of these points along the sides of the compartment provides flexibility in securing various types and sizes of cargo.

For those requiring additional securing options, aftermarket solutions are available. Some Transit Courier owners have found creative ways to add extra tie-down points. For example, one user suggests utilizing the pre-threaded holes behind the sliding doors to install additional D-rings. Another option involves using the bolts under the rubber mat just in front of the wheel wells to create floor-level tie-down points.

At the rear of the van, near the roof, there are additional securing options. On the driver’s side, a small bracket mounted at the edge of the headliner can serve as a tie-down hook. A similar threaded hole has been found on the passenger side, where an additional D-ring can be installed after trimming the headliner.

For those requiring more robust cargo securing options, Ford offers a set of 10 Cargo Tie Down Rings that slide along rails to form multiple lashing points in any position. These can be used in combination with airline rails on the side wall, floor, or roof. Made of galvanized steel with blue plastic sliding blocks, these tie-down rings have a load retention capacity of 500 daN and can be used with hooks or straps.

Load-Through Function

One of the standout features of the Ford Transit Courier has an impact on its ability to transport longer items. The van has a load-through function that allows longer payloads to extend into the interior of the vehicle. This feature consists of a hatch in the bulkhead that enables items to be slotted through and under the passenger seat. See Ford Transit Courier Base

This load-through function has a significant impact on the van’s versatility. It effectively increases the maximum load length, allowing for the transportation of items that would otherwise be too long for the standard cargo area. This feature has a particular impact on businesses that occasionally need to transport longer items without compromising the van’s compact exterior dimensions.

It’s important to note that while this feature enhances the van’s capabilities, users should be mindful of weight distribution and secure fastening of extended loads. The load-through function should be used in conjunction with the van’s tie-down points to ensure safe transportation of longer items.

These interior features of the Ford Transit Courier work together to create a highly functional and adaptable cargo space. The combination of a versatile bulkhead, numerous tie-down options, and the innovative load-through function has a significant impact on the van’s ability to meet a wide range of commercial transportation needs.

Conclusion Ford Transit Courier Dimensions

The Ford Transit Courier stands out as a versatile and efficient compact van, perfectly suited for businesses operating in urban environments. Its well-thought-out dimensions have an impact on its ability to navigate tight spaces while still offering impressive cargo capacity. The van’s exterior measurements, combined with its carefully designed load area and door dimensions, have an influence on its practicality for various commercial tasks. What’s more, the Transit Courier’s payload and towing capabilities make it a strong contender in its class.

To wrap up, the Ford Transit Courier’s interior features, including bulkhead options, tie-down points, and the innovative load-through function, further enhance its appeal to businesses. These features have an impact on the van’s flexibility to handle different types of cargo securely. With its blend of compact size, generous cargo space, and thoughtful design elements, the Ford Transit Courier proves to be a reliable choice to meet the diverse needs of modern businesses in the commercial vehicle market.

FAQs Ford Transit Courier Dimensions

What are the cargo dimensions of a Ford Transit Courier?
- The Ford Transit Courier’s cargo area has a load length of 1.6 meters, which is part of what makes it the smallest van in the Transit range. Despite its compact size, it can carry a payload of up to 600kg.
Can you provide the overall dimensions of a Ford Courier van?
- The Ford Courier van, specifically the Mk V 1.6 model, measures 4,457 mm (175.5 in) in length, 1,793 mm (70.6 in) in width, and 1,477 mm (58.1 in) in height, with a wheelbase of 2,830 mm (111.4 in).
What are the specific dimensions of the Ford Transit Courier from the year 2017?
- The 2017 Ford Transit Courier has an overall length of 4157mm. The width measures 1764 mm without mirrors and 2112 mm with mirrors. The height of the van is 1770mm when unladen, which decreases slightly under load.
How does the Ford Transit Courier compare in size to the Transit Connect?
- The Ford Transit Courier is slightly smaller than the Transit Connect. While the Courier can carry a 600kg payload with a load length of 1.6 meters, the Connect can handle up to 750kg, depending on the model. Despite its smaller size, the Courier is generally more cost-effective.
