Fiat Scudo Van Dimensions at a Glance

The Fiat Scudo is a medium-sized panel van that sits comfortably between compact car-derived vans like the Fiat Doblo and larger long-wheelbase workhorses like the Fiat Ducato. Since its reintroduction in 2022 as part of Stellantis' shared medium van platform, the Scudo has been engineered to be easy to live with day to day: short enough to slip into standard parking bays, tall enough to stand only fractionally above most multi-storey car park height barriers, and spacious enough inside to swallow a genuine working payload.

At its most compact, the current Scudo measures roughly 4.95 metres long, 1.92 metres wide (excluding mirrors) and just under 1.90 metres tall. That puts it in the same size bracket as the Ford Transit Custom, Volkswagen Transporter and Vauxhall Vivaro, and makes it a natural choice for tradespeople, couriers and camper converters who need practicality without the bulk of a large panel van.

Exterior Dimensions: Length, Width and Height

The Fiat Scudo is offered in two body lengths — Standard and Long — with a single roof height. This is a deliberate simplification compared with rivals that offer high-roof variants, but it keeps the Scudo genuinely accessible for urban work. Below we break the exterior dimensions down by area so you can quickly see whether the van will fit your driveway, workshop bay or car park entry height.

Overall Length by Generation

The current-generation Fiat Scudo, launched in 2022, measures 4,959mm in Standard (L1) form and 5,309mm in Long (L2) form. The difference between the two — 350mm — sits entirely in the rear overhang, so the wheelbase and driving footprint feel identical from behind the wheel. The earlier Scudo produced between 2007 and 2016 was slightly shorter, at 4,813mm for the short-wheelbase and 5,143mm for the long-wheelbase versions, while the original 1996–2006 model came in at around 4,428mm. If you're buying used, always check which generation you're looking at, as parking and garage clearance can differ by more than half a metre.

Width With and Without Mirrors

Body width on the current Scudo is 1,920mm, which stretches to 2,204mm when you factor in the door mirrors in their driving position. Fold the mirrors in and total width drops back to around 2,050mm, which is useful for tight loading bays and narrow domestic garages. It's worth noting that the Scudo, like its Peugeot Expert, Citroën Dispatch and Vauxhall Vivaro siblings, is specifically designed to fit through a 2-metre-high car park barrier and within a 2-metre-wide parking bay with mirrors folded — a rarity in the medium van class.

Overall Height and Garage Access

Unladen, the current Scudo stands 1,895mm tall. That gives it comfortable clearance beneath the standard 2-metre height restriction found at supermarkets, multi-storey car parks and residential barrier gates. Add a roof rack, ladder frame or air conditioning pod and you'll need to reassess, but in factory form the Scudo is one of the easiest medium vans in the UK to park in everyday urban environments. The previous-generation model was slightly taller at 1,942mm, which put it much closer to the 2-metre threshold.

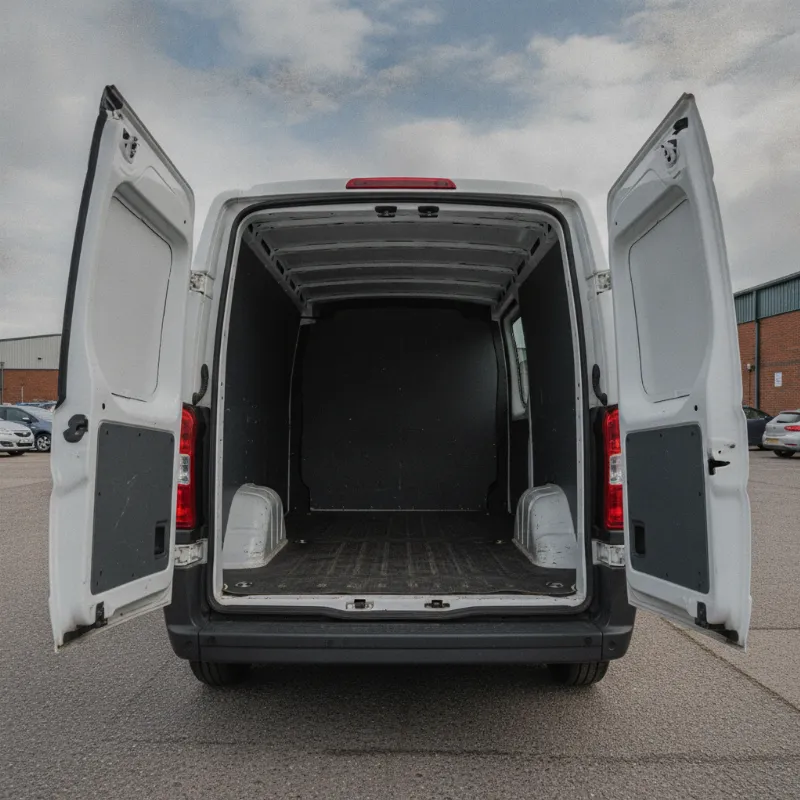

Load Area Dimensions and Cargo Volume

Exterior size is only half the story. What really matters for most buyers is how much you can actually fit inside the load bay, and here the Scudo makes very good use of its footprint. Total load volume ranges from 5.8 cubic metres in the Standard body to 6.6 cubic metres in the Long body, and both can be increased further when the optional Moduwork folding front passenger seat and load-through bulkhead is specified.

Load Length, Width and Height Inside

Behind the bulkhead, the Standard Scudo offers a maximum load length of 2,512mm, rising to 2,862mm in the Long version. With the Moduwork load-through feature, these figures extend dramatically to 3,674mm and 4,024mm respectively — enough to comfortably carry standard 8x4 sheet materials or long lengths of copper pipe and timber. Load bay width is 1,628mm overall, with 1,258mm between the wheel arches, meaning a Euro pallet can be loaded sideways. Internal load height sits at 1,397mm, which is generous for a medium van without a high-roof option, and the side loading door aperture measures 1,282mm high by 935mm wide.

Payload and Gross Vehicle Weight

The Fiat Scudo range covers gross vehicle weights from around 2,700kg to 3,100kg depending on drivetrain and specification. Payload varies accordingly, from roughly 1,000kg on the lightest diesel derivatives to around 1,400kg on the most capable variants. The all-electric E-Scudo carries a slightly lower payload due to battery weight, but still typically manages over 1,000kg. Braked towing capacity peaks at 2,500kg on diesel models and 1,000kg on the electric version — worth checking carefully if you regularly tow plant or a trailer.

Fiat Scudo Camper Conversion Dimensions

The Scudo has become a popular base for micro-camper conversions, and its dimensions explain why. The 1,397mm internal load height is tall enough for a comfortable seated bench-and-table layout, and the flat floor length of over 2.5 metres allows a proper full-length bed to be built in behind the bulkhead — most adults can sleep across the vehicle diagonally, or lengthways in the Long body. Pop-top or elevating roof conversions add sleeping capacity above without compromising the sub-2-metre parking height when closed. Because the exterior width fits within standard UK parking bays and the height clears most height barriers, a converted Scudo remains genuinely usable as a daily driver — a key advantage over larger Ducato or Boxer-based motorhomes.

Fiat Scudo 9 Seater Passenger Dimensions

Alongside the panel van, Fiat offers a passenger version — the Scudo Combi and the larger Ulysse/e-Ulysse people carrier — which shares the same body dimensions but is fitted with second and third row seating for up to nine occupants including the driver. Interior width across the seat rows is 1,628mm, matching the load bay, and headroom in the rear rows benefits from the near-1.9-metre overall height. The Long body version is the natural choice for nine-seat use, as it provides meaningful luggage space behind the third row — around 1,000 litres — whereas the Standard body is best for seven or eight occupants unless boot space is a low priority. Sliding side doors on both sides make access to the middle and rear rows easy in tight parking spaces.

How the Scudo Compares to Other Medium Vans

Dimensionally, the Fiat Scudo is almost identical to its Stellantis siblings — the Peugeot Expert, Citroën Dispatch, Vauxhall Vivaro and Toyota Proace — because they all share the same EMP2 platform. Against the wider medium van class, the Standard Scudo is about 40mm shorter than a short-wheelbase Ford Transit Custom and around 20mm narrower than a Volkswagen Transporter T6.1. Load volume is broadly on par with both rivals, though the Transit Custom edges ahead slightly in maximum cargo capacity when specified with a high roof, an option Fiat does not offer. Where the Scudo scores strongly is on its sub-1.9-metre overall height and neat parking footprint, making it arguably the easiest medium van in its class to live with in cities.

Is the Fiat Scudo the Right Size for Your Needs?

Choosing between the Standard and Long body comes down to how you use the van. If you're an urban tradesperson, courier or mobile service business regularly parking on residential streets and in multi-storeys, the Standard L1 body is likely to be the sweet spot: it delivers a genuine 5.8m³ of load space in a package barely longer than a large family estate. If you routinely carry long timber, ladders, extrusions or bulky flat-pack goods, the Long L2 body's extra 350mm of load length — and the option of load-through bulkhead access — is well worth having. Camper converters and families needing seven-plus seats should also lean toward the Long body for the additional flexibility it provides behind the rear axle.

Finding a Used Fiat Scudo for Sale

Because the Scudo shares its body, drivetrain and dimensions with several other well-known models, used stock is plentiful across the UK and prices tend to be competitive. When viewing a used example, always confirm the body length (L1 or L2), gross vehicle weight, whether the Moduwork bulkhead is fitted and whether the van has an OE ply-lining or bulkhead upgrade — all of these affect real-world usable dimensions. Check service history for cambelt intervals on diesel models and battery health reports on the E-Scudo. Measuring your intended parking space, garage doorway or workshop bay before you view is the single best piece of advice we can give: the Scudo is one of the most compact medium vans on sale, but at nearly five metres long it still needs a proper look before you commit.

FAQs

What are the exterior, interior and load area dimensions of a Fiat Scudo van?
The current Fiat Scudo measures 4,959mm long in Standard body and 5,309mm long in Long body, with a width of 1,920mm (2,204mm including mirrors) and an overall height of 1,895mm. Inside the load bay, maximum load length is 2,512mm (Standard) or 2,862mm (Long), extending to 3,674mm/4,024mm with the Moduwork load-through bulkhead. Internal load width is 1,628mm (1,258mm between wheel arches) and internal load height is 1,397mm. Total cargo volume is 5.8m³ in Standard body and 6.6m³ in Long body.

Can a Euro pallet fit in the back of a Fiat Scudo?
Yes. The Scudo's load bay measures 1,258mm between the wheel arches, which is enough to load a standard 1,200 x 800mm Euro pallet sideways. The Standard body will carry two Euro pallets end-to-end, while the Long body accommodates three, making the Scudo a genuinely useful workhorse for palletised deliveries.

What's the difference between the Standard and Long wheelbase Fiat Scudo?
Both share the same wheelbase and driving footprint — the difference is entirely in the rear overhang. The Long body adds 350mm to the exterior length and to the load area length, giving you 6.6m³ of cargo volume versus 5.8m³ in the Standard. Width, height, payload structure and turning circle are broadly identical, so the Long is often the smarter choice if space allows.
