How Long Is a Vauxhall Movano? Quick Answer

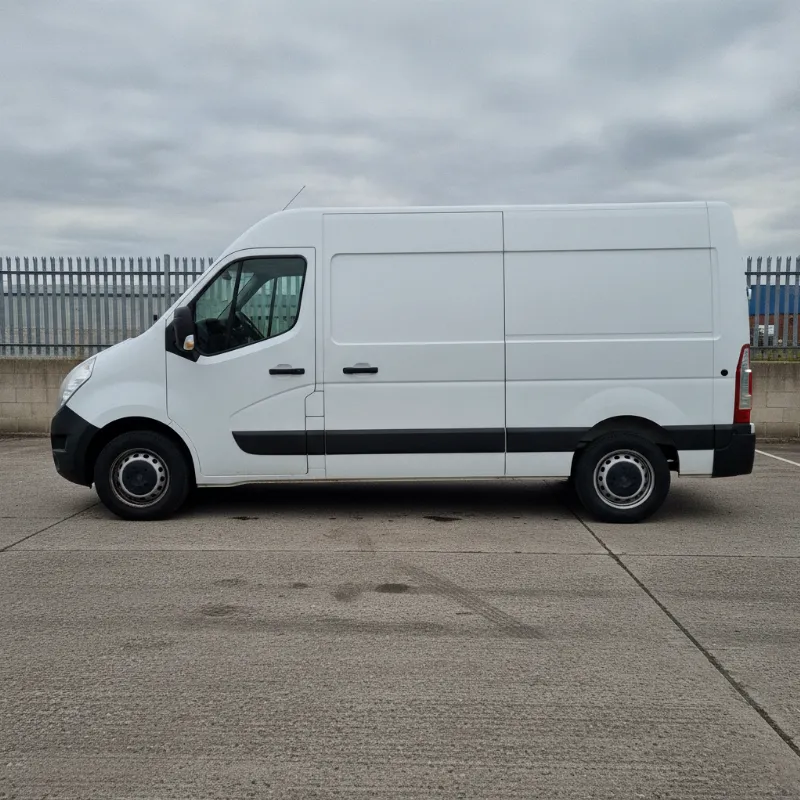

The Vauxhall Movano is one of the most versatile large panel vans on the UK market, and its overall length varies significantly depending on which body size you choose. In short, a Vauxhall Movano measures anywhere from around 5.07 metres to 6.36 metres in total length, depending on whether you pick the L1 short wheelbase, L2 medium wheelbase, L3 long wheelbase or L4 extra-long wheelbase variant.

That gives buyers a broad spread of options: a compact urban-friendly Movano at just over five metres long, or a full-fat long-haul workhorse pushing past six-and-a-third metres. Height, width and load volume then stack on top of these length options, meaning you can specify a Movano that fits almost any working brief. Below we break down the exact figures for each body length, look at popular real-world configurations such as the 2008 3500 LWB high roof, and cover Movano tipper dimensions too.

Vauxhall Movano Length by Body Size (L1, L2, L3, L4)

Vauxhall (and its platform-sharing sister brands) label the Movano's body lengths as L1, L2, L3 and L4. Each step up adds either extra wheelbase, longer rear overhang or both — increasing load length and, of course, the outside dimensions you'll need to think about when parking, manoeuvring and storing the van overnight.

L1 Short Wheelbase Length

The L1 Movano is the shortest panel van in the range and measures approximately 5,075mm (5.07m) from nose to tail, riding on a wheelbase of around 3,182mm. It's the go-to choice for drivers who need proper van capacity but still want something that fits comfortably in a standard car park bay or navigates tight city streets. Load length inside is around 2.58m, which is enough for two Euro pallets loaded lengthways.

L2 Medium Wheelbase Length

Step up to the L2 and the overall length grows to roughly 5,548mm (5.55m), typically on the same 3,682mm wheelbase used across mid-size variants. This is arguably the sweet spot for many trades — long enough to carry three Euro pallets and around 3.08m of load length, but still manageable for daily use. L2 remains popular with couriers, mobile fitters and small removal firms.

L3 Long Wheelbase Length

The L3 Movano stretches to approximately 6,198mm (6.20m) overall, with a wheelbase around 4,035mm. Load length climbs to about 3.73m, opening up capacity for four Euro pallets or long items such as timber, ductwork and racking. This is the classic "LWB" specification and the version most operators mean when they refer to a long-wheelbase Movano.

L4 Extra-Long Wheelbase Length

Top of the tree is the L4, sometimes called extra-long or "maxi" length. Overall length is around 6,363mm (6.36m), still on the L3's 4,035mm wheelbase but with a much longer rear overhang. Load length inside grows to approximately 4.07m, making it ideal for high-volume delivery, luton-style conversions, motorhome bases and specialist bodybuilds where every extra centimetre of load bay matters.

How Long Is a Vauxhall Movano LWB?

When most buyers ask about a "Movano LWB", they're referring to the L3 long-wheelbase panel van, which measures around 6.20 metres overall. That figure covers front bumper to rear doors and is the number you'll want when checking whether the van fits your yard, garage or overnight parking spot.

It's worth noting that Vauxhall has used the LWB label across different generations of Movano. Earlier X70-generation models (built on the Renault Master / Nissan NV400 platform prior to 2010) used slightly different chassis codes but produced very similar overall dimensions. If you're buying used, always double-check the V5C and a physical measurement, as tail-lift additions, tow bars and roof racks can add meaningful length that isn't reflected in the factory brochure.

2008 Vauxhall Movano 3500 LWB High Roof 2464cc Length and Dimensions

The 2008 Vauxhall Movano 3500 LWB high roof with the 2.5-litre (2464cc) CDTi diesel is a common used-van workhorse and still turns up regularly in the trade. This was the pre-facelift, first-generation Movano, and its LWB high-roof panel van measured approximately 5,588mm in overall length, sitting on a 3,578mm wheelbase.

Overall height for the high-roof version was around 2,590mm, with an exterior width (excluding mirrors) of about 2,080mm. Inside, load length was roughly 3,530mm, load height around 1,955mm and load width about 1,762mm — giving useful load volume of just over 12 cubic metres. The "3500" in the name refers to the 3.5-tonne gross vehicle weight rating, allowing a payload of around 1,600kg depending on exact spec. If you're viewing one of these older Movanos, remember that panel-van conversions, ply-lining and previous ownership modifications can all subtly alter the practical measurements.

Vauxhall Movano Tipper Length and Load Bed Dimensions

Movano tippers are built on the chassis-cab version of the van and typically come in single-cab or crew-cab layouts. A single-cab Movano tipper is generally around 5.55m to 5.99m long overall, depending on wheelbase, with a load bed measuring roughly 3.10m long and 2.10m wide — plenty for a couple of tonnes of aggregate, tools or landscaping materials.

The crew-cab tipper, which seats up to seven, sacrifices some load-bed length to make room for the rear seat row. Overall length is similar at around 5.99m to 6.20m, but load-bed length drops to roughly 2.50m. Drop sides usually measure around 400mm high, and the tipping mechanism is typically electro-hydraulic. As always with tipper conversions, precise dimensions vary between bodybuilders, so cross-check against the specific vehicle's build plate before committing.

Full Vauxhall Movano Dimensions: Width, Height and Load Space

Length is only half the story. The current Movano panel van measures approximately 2,070mm wide excluding mirrors (around 2,470mm with mirrors extended), so factor that in when checking width restrictions, height barriers and loading bays.

Height comes in three flavours: H1 standard roof at around 2,307mm, H2 medium roof at around 2,499mm, and H3 high roof at around 2,744mm. Not every roof height is available on every length — L1 and L2 tend to offer H1 and H2, while L3 and L4 unlock H2 and H3. Load volume ranges from roughly 8 cubic metres in the smallest L1H1 up to around 17 cubic metres in the largest L4H3 configuration. Rear door opening height is about 1,820mm on H2 and 2,000mm+ on H3, and the side loading door typically offers around 1,270mm of clear width.

Choosing the Right Movano Size for Your Business

Picking the right Movano length comes down to three practical questions: what's the longest single item you regularly carry, how much total volume do you need, and where will the van live overnight? An L1 or L2 is often plenty for tradespeople and multi-drop couriers, while an L3 LWB is the safe default for parcel operators, removals and general haulage. The L4 only really earns its keep when you genuinely need that extra 40cm of load length or you're commissioning a specialist conversion.

Don't forget the vertical dimension either — a high-roof H3 lets you stand up inside to pick stock or fit racking, which can be a game-changer for mobile workshops. Finally, consider access: a 6.36m L4 is a lot of van to reverse onto a domestic drive, so match the vehicle to your real working environment, not just the peak load-day scenario. If in doubt, ask to view examples of two adjacent sizes side by side before making a decision — the difference between L2 and L3 in the metal is more obvious than the numbers on paper suggest.

FAQs

What is the exact length of a Vauxhall Movano?
A Vauxhall Movano panel van ranges from approximately 5,075mm (5.07m) in L1 short-wheelbase form up to around 6,363mm (6.36m) in L4 extra-long wheelbase form. The popular L2 medium wheelbase measures about 5,548mm and the L3 long wheelbase around 6,198mm. Exact figures vary slightly by generation and by any conversions such as tow bars or tail-lifts.

How long is a Vauxhall Movano LWB in metres?
A long-wheelbase (L3) Vauxhall Movano panel van is around 6.20 metres long overall, with a wheelbase of roughly 4.04 metres and an internal load length of about 3.73 metres. Older first-generation LWB Movanos from before 2010 were slightly shorter at around 5.59m overall.

Will a Vauxhall Movano fit in a standard UK parking bay?
A standard UK parking bay is 4.8m long, so no full-size Movano will fit within the lines — even the shortest L1 at 5.07m overhangs slightly. In practice most car parks accommodate this without issue, but height-restricted multi-storeys are more of a concern, particularly for H2 and H3 roof heights which exceed the common 2.0m barrier.

How much can you fit inside a Vauxhall Movano?
Load volume depends on the combination of length and roof height. An L1H1 gives around 8 cubic metres, while the largest L4H3 offers up to around 17 cubic metres. Pallet capacity ranges from two Euro pallets in L1 up to four or five in L3 and L4 variants.

Is the Vauxhall Movano the same size as a Renault Master?
Yes — the Vauxhall Movano shares its platform with the Renault Master and Nissan Interstar/NV400, so external dimensions across L1, L2, L3 and L4 are essentially identical between the three brands. Trim, badging, warranty and equipment differ, but if you know the size of one you know the size of the others.
