Nissan Interstar Dimensions at a Glance

The Nissan Interstar is a large panel van designed to compete in the busy 3.5-tonne segment, and one of its biggest strengths is the sheer breadth of size options available. Whether you need a compact city-friendly delivery vehicle or a long-wheelbase, high-roof workhorse capable of swallowing pallets and long lengths of timber, the Interstar range covers it. Understanding the dimensions is essential before you commit — a van that's too big will struggle in tight urban streets and multi-storey car parks, while one that's too small will cost you time and money in extra trips.

The Interstar is offered in three wheelbases — short (L1), medium (L2) and long (L3) — with two roof heights (H1 standard and H2 high) available on most configurations. Overall lengths range from just under 5.1 metres to more than 6.3 metres, with load volumes stretching from around 8 cubic metres up to 17 cubic metres in the largest L3H2 body. Gross vehicle weight options cover 3.3 and 3.5 tonnes, with payloads reaching well over 1,500kg depending on specification.

Exterior Dimensions: Length, Width and Height

Exterior size is the first thing to check when you're planning routes, parking or garaging your van. The width of the Interstar is broadly consistent across the range at around 2,070mm without mirrors and 2,470mm with mirrors extended, so it's the length and height that really change between variants. Here's how each wheelbase measures up.

Short Wheelbase (SWB) Measurements

The short-wheelbase L1 Interstar has an overall length of approximately 5,075mm, with a wheelbase of 3,182mm. Standard roof (H1) height is around 2,307mm, making it low enough to clear most standard car park height barriers set at 2.1m only just being an issue — always double-check specific barrier heights. The SWB is the most manoeuvrable Interstar, with a turning circle of roughly 11.9 metres between kerbs, and it's the natural choice for drivers who spend most of their day in town.

Medium Wheelbase (MWB) Measurements

The MWB L2 Interstar stretches to around 5,575mm in overall length on a 3,682mm wheelbase. Standard roof height matches the SWB at 2,307mm, while the high-roof H2 version climbs to approximately 2,499mm. This is the most popular configuration in the range because it balances usable load space with sensible external dimensions, and the turning circle of around 13.3 metres remains manageable in most urban environments.

Long Wheelbase (LWB) Measurements

The LWB L3 Interstar measures approximately 6,363mm in total length, riding on a 4,332mm wheelbase. With the H2 high roof fitted, overall height reaches around 2,815mm, which will exceed most standard height barriers, so route planning becomes important. The turning circle grows to roughly 14.5 metres. This is the go-to spec for couriers, removals firms and tradespeople carrying long, bulky loads.

Load Area Dimensions and Cargo Volume

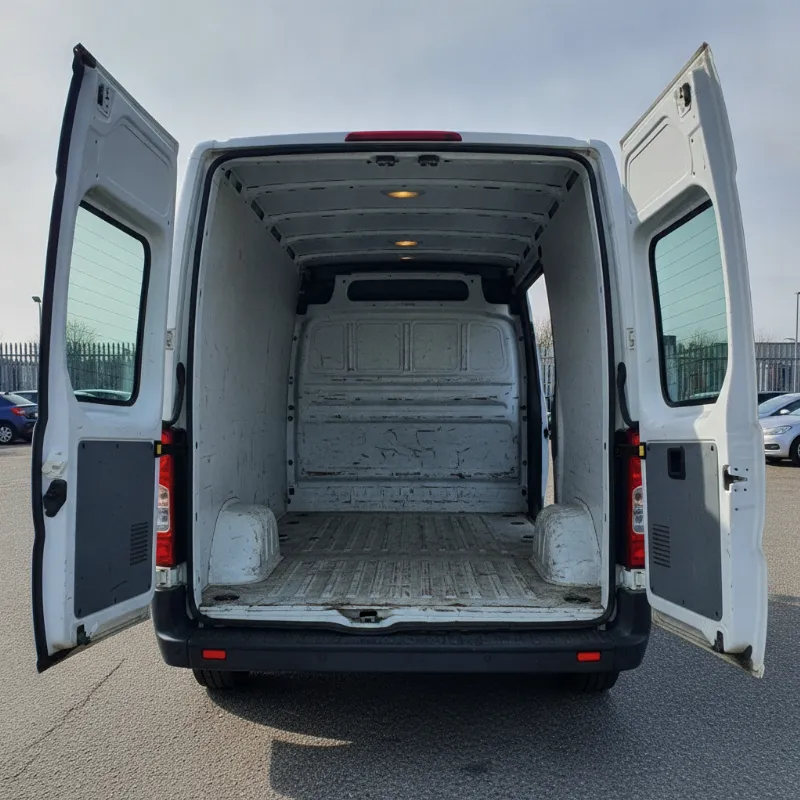

What matters most for many buyers is what fits inside. The Interstar's load bay is squared-off and practical, with wheel arch intrusion kept as narrow as possible to make loading pallets and stacking boxes easier. Side-loading doors are standard on most trims, and rear barn doors open to around 270 degrees on request.

Load Length, Width and Height by Variant

Maximum load length ranges from roughly 2,583mm in the L1 up to 3,733mm in the L3, measured at floor level. Load width is 1,870mm across the range, narrowing to 1,380mm between the wheel arches — comfortably enough for a standard Euro pallet loaded either way. Interior load height is around 1,894mm on H1 vans and 2,144mm on H2 high-roof vans, allowing many operators to stand upright inside. Total load volume climbs from 8.0m³ in the smallest L1H1 to approximately 17.0m³ in the L3H2.

Payload and Gross Vehicle Weight

Payload figures depend heavily on trim, engine and specification, but the Interstar range typically offers between 1,100kg and 1,650kg of useful carrying capacity. The 3.5-tonne GVW variants naturally give the biggest payloads, while 3.3-tonne versions are available for operators who want a slightly lighter vehicle for insurance or driver licensing reasons. Braked towing capacity reaches up to 2,500kg on most models.

MWB Nissan Interstar Freezer Van Dimensions

Converted into a freezer van, the medium-wheelbase Interstar is a popular choice for frozen food distribution, ice cream deliveries and pharmaceutical logistics needing sub-zero temperatures. Insulation panels typically reduce internal load length by around 150mm and load width by around 100mm, giving a usable load length of approximately 2,900mm and width of 1,700mm. Internal height on the H2 high-roof freezer drops to around 1,950mm once the ceiling insulation and evaporator unit are installed. Payload after conversion is generally between 900kg and 1,200kg, depending on refrigeration unit size.

MWB Nissan Interstar Fridge Van Dimensions

A chilled (fridge) conversion uses thinner insulation than a full freezer, so you retain more usable space inside. Expect a load length of around 2,950mm, load width of 1,750mm and load height of around 2,000mm in an H2 MWB Interstar fridge van. Because the refrigeration unit is lighter and thermal mass demands are lower, payload is typically preserved to around 1,200–1,350kg — ideal for florists, catering suppliers and grocery delivery businesses.

MWB Nissan Interstar Frozen Van Dimensions

Frozen-spec conversions built to operate at -25°C or below use the thickest insulation in the refrigerated-van category. Internal dimensions on an MWB Interstar frozen van typically come in at around 2,850mm long, 1,680mm wide and 1,900mm tall inside the H2 high-roof body. Payload drops slightly compared with a standard freezer conversion due to heavier insulation and a more powerful refrigeration unit, generally settling between 850kg and 1,100kg.

MWB Nissan Interstar Refrigerated Van Dimensions

"Refrigerated" as a general term covers both chilled and frozen conversions, and the MWB Interstar is a firm favourite in this segment thanks to its cube-shaped load area. Broadly, expect internal load dimensions of 2,900–2,950mm long, 1,700–1,750mm wide and 1,950–2,050mm tall depending on the conversion specialist and the level of insulation used. External dimensions remain unchanged from the standard MWB panel van, so no route planning adjustments are needed compared with an unconverted Interstar.

Nissan Interstar Camper Van Conversion Dimensions

The Interstar has become a well-liked base for camper conversions thanks to its generous load area, near-vertical walls and the availability of high-roof variants that allow you to stand up inside. In an L2H2 camper build, you typically have around 3,050mm of internal length to work with — enough for a rear fixed bed and a modest kitchen unit — a width of 1,870mm and standing height of 2,144mm. Step up to the L3H2 and internal length grows to around 3,730mm, comfortably accommodating a fixed transverse bed, full kitchen, wet room and lounge/dining area. External dimensions match the standard panel van, so your camper will still fit on a standard driveway of 6.5m or more.

How Interstar Dimensions Compare to Rivals

The Nissan Interstar shares its platform with the Renault Master and Vauxhall Movano, so its dimensions are almost identical to those two vans. Against other rivals in the class, the Interstar's L3H2 load volume of 17.0m³ is competitive with the Ford Transit L4H3 (15.1m³), Mercedes-Benz Sprinter L3H2 (14.0m³) and Volkswagen Crafter L4H3 (18.4m³). Where the Interstar particularly shines is load width between the wheel arches at 1,380mm, which comfortably accepts a Euro pallet loaded sideways — something not all rivals manage without careful positioning. Overall external length in L3 form is broadly middle-of-the-pack, so garage and depot compatibility should be similar to competing large vans.

Choosing the Right Interstar Size for Your Business

Picking the correct Interstar variant comes down to three practical questions: what will you carry, where will you drive it, and where will you park it? If your day-to-day work is city-based courier or trade work with modest loads, the SWB L1H1 offers the easiest driving experience and clears most car park barriers. For general trades, mobile workshops and multi-drop delivery drivers, the MWB L2H2 is the sweet spot — enough load volume for most jobs without becoming unwieldy. Removals firms, parcel operators and refrigerated distributors will usually gravitate to the L3H2 for its maximum cube and load length.

Whatever your use case, always measure your typical loads, check the height of any barriers on your regular routes, and confirm your driveway or depot can accommodate the wheelbase and turning circle. Getting the dimensions right at the point of purchase will save you years of frustration — and get the most out of what the Interstar range has to offer.

FAQs

What are the exterior and load area dimensions of the Nissan Interstar across its wheelbase and body variants?
The Nissan Interstar comes in three wheelbases (L1 SWB, L2 MWB, L3 LWB) with two roof heights (H1 standard, H2 high). Exterior lengths range from approximately 5,075mm on the L1 to 6,363mm on the L3, with widths of 2,070mm (without mirrors) and heights from 2,307mm (H1) up to 2,815mm (L3H2). Load lengths run from around 2,583mm in the L1 to 3,733mm in the L3, load width is 1,870mm (1,380mm between wheel arches), and interior height reaches 2,144mm on H2 variants. Total load volume ranges from 8.0m³ to 17.0m³.

Will a Nissan Interstar fit under a standard 2m car park barrier?
No, not in most cases. Even the lowest-roof H1 Interstar stands at approximately 2,307mm tall, so it will exceed the typical 2.0m or 2.1m car park height restriction. If you regularly need to access height-restricted car parks, you may need to consider a smaller medium van instead. Always check specific barrier heights before planning routes.

How many Euro pallets can a Nissan Interstar carry?
With a between-wheel-arch width of 1,380mm, the Interstar accepts Euro pallets loaded either way. The L1 SWB typically carries 3 Euro pallets, the L2 MWB carries 4, and the L3 LWB carries 5 Euro pallets. If loading UK standard pallets (1,200mm x 1,000mm), capacities are similar depending on orientation.

What is the payload of the Nissan Interstar?
Payload varies by trim, engine and GVW rating, but ranges from around 1,100kg on higher-spec 3.3-tonne models up to approximately 1,650kg on lighter 3.5-tonne panel van variants. Refrigerated conversions reduce payload by 200–500kg depending on insulation thickness and the refrigeration unit fitted.

Is the Nissan Interstar the same size as the Renault Master and Vauxhall Movano?
Yes. The Nissan Interstar shares its platform, body and chassis with the Renault Master and Vauxhall Movano, so exterior and load area dimensions are effectively identical across the three vans. The main differences between them are badge, trim details, warranty and dealer network.
