Mercedes Sprinter dimensions at a glance

The Mercedes-Benz Sprinter is one of the most versatile large panel vans on the UK market, and a big part of that flexibility comes from the sheer number of size combinations on offer. Between four body lengths (L1 to L4), three roof heights and a choice of front-wheel or rear-wheel drive, there's a Sprinter to suit almost any trade, courier route or conversion project.

Broadly speaking, exterior length ranges from around 5.27 metres on the compact L1 up to just over 7.36 metres on the extra-long L4. Overall height starts at roughly 2.36 metres for the standard roof and climbs to about 2.90 metres on the super-high-roof models. Load volumes span from around 7.8 cubic metres at the smaller end to a cavernous 17 cubic metres on the largest wheelbase and roof combination. Payloads, depending on gross vehicle weight rating, run from about 800kg up to well over 3 tonnes on the 5.0t chassis variants.

Below we break each of these figures down properly so you can work out exactly which Sprinter fits your load, your yard and your driveway. If you'd like to see current stock while you read, our full range of Mercedes Sprinter vans for sale covers most of the body and roof combinations discussed here.

Sprinter body lengths explained: L1, L2, L3 and L4

Mercedes classifies Sprinter panel vans by wheelbase and body length codes: L1 (compact), L2 (standard), L3 (long) and L4 (extra long). The L1 sits on a short 3,259mm wheelbase and is aimed at urban operators who need Sprinter build quality but don't require a huge load area. The L2, on a 3,665mm wheelbase, is the most common choice for general-purpose trades and multi-drop couriers.

Step up to the L3 and the wheelbase grows to 4,325mm, giving you a noticeably longer load bay that can swallow eight-foot boards laid flat with room to spare. The L4 keeps that same 4,325mm wheelbase but adds a rear overhang, taking overall length to more than 7.3 metres. That's the go-to option for luton conversions, motorhome bases and any operator moving light but bulky freight.

How long is a Mercedes Sprinter van in metres and feet?

In practical terms, here are the approximate overall exterior lengths you'll see quoted on the V5C: L1 is around 5.27m (17ft 3in), L2 is roughly 5.93m (19ft 5in), L3 comes in at about 6.97m (22ft 10in), and L4 stretches to approximately 7.37m (24ft 2in). Bear in mind that badges and step bumpers can add a few centimetres, and 4x4 or AWD variants can vary very slightly. Always double-check the exact figure on the individual vehicle's data plate if you're building to fit a specific loading bay or garage.

Sprinter roof heights: standard, high and super-high

Roof height is where the Sprinter really opens up as a workspace. The standard roof measures around 2.36m overall exterior height, keeping you clear of most multi-storey car park barriers, which are typically set at 2.10m to 2.30m — worth checking against the exact spec. The high roof pushes exterior height to roughly 2.63m, giving interior standing headroom of around 1.90m for anyone working out of the back of the van all day.

The super-high roof, available on the longer L3 and L4 bodies, takes overall height up to about 2.90m and delivers interior headroom pushing 2.10m. That's a game-changer for mobile workshops, conversion projects and anyone who's tired of ducking. Just remember: taller vans catch crosswinds more noticeably and are barred from many height-restricted car parks, so map out your regular routes before committing to the tallest option.

Load area dimensions and load volume by variant

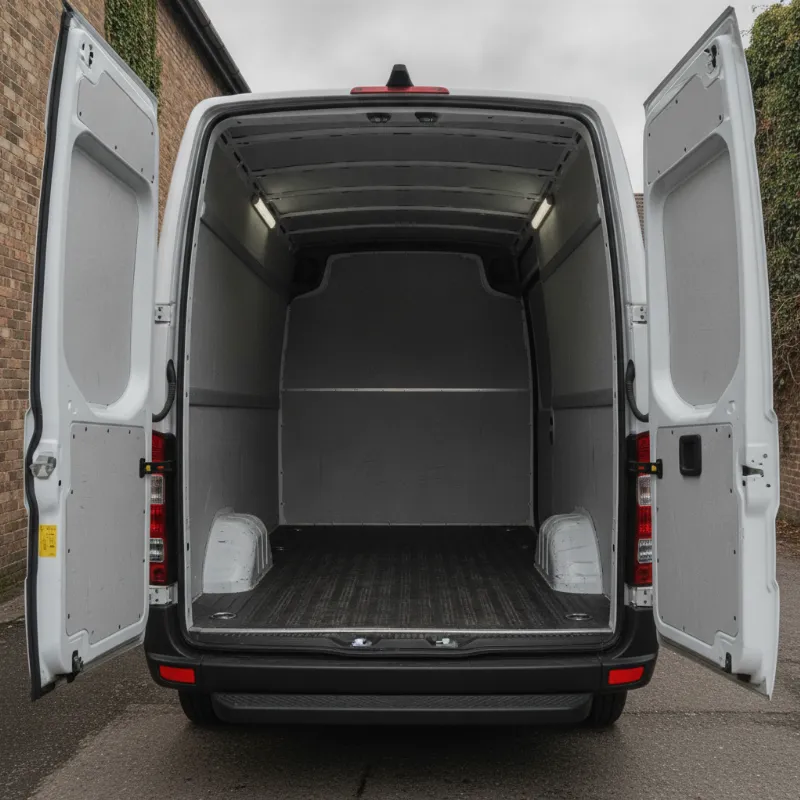

Load length is where the L1 to L4 distinction really matters. Measured at floor level, the L1 gives you roughly 2.73m of load length, the L2 about 3.27m, the L3 around 4.41m and the L4 approximately 4.81m. That L3 figure is important because it's the sweet spot for carrying two Euro pallets plus extra tools and materials, while the L4 lets you slot three Euro pallets fore-and-aft without stacking.

Total load volume climbs accordingly. Expect roughly 7.8 cubic metres in an L1 standard-roof, around 9.5 cubic metres for an L2 with a high roof, up to about 14 cubic metres for an L3 high-roof, and a full 17 cubic metres in an L4 super-high-roof. Interior load bay height sits at approximately 1.72m under the standard roof, 1.90m under the high roof and around 2.10m under the super-high roof.

Interior width, wheel arch width and rear door aperture

Interior width between the trim panels is roughly 1.79m across all body sizes, but the critical number for pallet loaders is the width between the wheel arches: approximately 1.41m on rear-wheel-drive Sprinters and about 1.35m on front-wheel-drive versions. Both comfortably accept a standard 1.20m x 0.80m Euro pallet loaded across.

The rear door aperture is typically 1.55m wide and around 1.63m tall on standard-roof models, rising to about 1.84m on high-roof variants. Rear doors open to 180 degrees as standard, with a 270-degree option available on many trims — handy when you're loading up against a wall or need the doors flat against the sides of the van. Sliding side door aperture is usually around 1.30m wide, plenty for a pallet truck to pass through.

Exterior width, height and turning circle

Exterior width without mirrors is a fairly consistent 2.02m across the range, or roughly 2.35m if you include the door mirrors — a number worth remembering when threading through narrower urban streets and older industrial estate gates. Overall width with mirrors folded drops back closer to the body width, which helps in tight depot bays.

Turning circle varies quite a bit with wheelbase. The L1 will spin around in about 11.5m kerb-to-kerb, the L2 needs roughly 13.6m, the L3 stretches to around 14.8m and the L4 requires closer to 15.6m. If you regularly work in city centres or on tight residential streets, the L1 or L2 will save you a lot of three-point turns.

Payload, GVW and Mercedes Sprinter weight figures

The Sprinter is offered at several gross vehicle weight (GVW) ratings: 3.0t, 3.5t, 4.1t, 4.25t (for eligible electric variants), and 5.0t on the chassis cab. Kerb weight for a typical L2 H2 panel van sits at around 2,100kg to 2,200kg, giving useful payloads of roughly 1,300kg to 1,400kg on a 3.5t plated van — the sweet spot for a standard UK Category B licence holder.

Step up to the 4.1t or 5.0t plated variants and payloads rise to around 1,900kg to well over 3,000kg, but you'll need a Category C1 or C entitlement on your licence to drive them. Braked towing capacity is up to 3,500kg on suitably specified models, which combined with the strong torque figures from the 2.0-litre diesel makes the Sprinter a genuine workhorse for plant and trailer work.

Which Sprinter size is right for your business?

For urban couriers and city-based tradespeople, the L1 or L2 with a standard or high roof usually strikes the best balance between manoeuvrability and load capacity. If you're a plumber, electrician or general builder wanting to stand up inside to organise racking, an L2 H2 is hard to beat and is by far the most common spec on the used market.

Furniture removers, parcel firms and event crews tend to gravitate to the L3 or L4 with a high or super-high roof, where the extra volume pays for itself in fewer trips. Motorhome converters and mobile business owners often favour the L3 H2, which offers enough length for a fixed bed plus a working kitchen without becoming unwieldy on the road.

Once you've narrowed down the length and roof combination that suits your work, it's worth browsing the current selection of Mercedes Sprinter vans for sale to compare payload plates, mileage and spec side by side. The right Sprinter is out there — it's just a question of matching the dimensions to your day-to-day workload.

FAQs

What are the exterior and interior dimensions of a Mercedes Sprinter van?
Exterior length ranges from around 5.27m on the L1 to 7.37m on the L4, with a consistent body width of 2.02m (2.35m including mirrors) and overall height from 2.36m (standard roof) to 2.90m (super-high roof). Inside, load length runs from about 2.73m to 4.81m depending on body size, interior width is roughly 1.79m (1.41m between the rear wheel arches on RWD models), and load volume spans from around 7.8 cubic metres up to 17 cubic metres. Payload sits between 800kg and over 3,000kg depending on GVW rating.

Will a Mercedes Sprinter fit in a standard UK car park?
It depends on the roof height. A standard-roof Sprinter at around 2.36m tall will breach most typical multi-storey car park height limits, which usually sit between 2.00m and 2.20m. High-roof (2.63m) and super-high-roof (2.90m) versions are definitely too tall for most public car parks. Length-wise, even an L2 Sprinter at 5.93m won't fit in a standard 4.8m UK parking bay without overhang, so plan on-street or commercial vehicle parking accordingly.

How many Euro pallets fit in a Mercedes Sprinter?
An L1 will take two Euro pallets loaded lengthways, an L2 comfortably takes two Euro pallets, an L3 fits three Euro pallets, and an L4 can carry four Euro pallets when loaded fore-and-aft. The 1.41m between-wheel-arch width on rear-wheel-drive Sprinters means you can also load 1.20m Euro pallets sideways where extra floor space is needed.

Can I drive a Mercedes Sprinter on a standard UK car licence?
Yes, provided the Sprinter is plated at 3.5 tonnes GVW or below, which covers the vast majority of panel van variants. A standard Category B licence issued after 1997 lets you drive vehicles up to 3,500kg. The 4.1t and 5.0t chassis and heavy-duty panel van variants require a Category C1 or C entitlement, so check the V5C and weight plate before you drive.

What is the difference between L1, L2, L3 and L4 Sprinter?
L1, L2, L3 and L4 refer to overall body length, driven mostly by wheelbase and rear overhang. L1 is the compact short-wheelbase version at about 5.27m long, L2 is the standard length at 5.93m, L3 is the long-wheelbase at 6.97m, and L4 shares the L3 wheelbase but adds a longer rear overhang to reach 7.37m. Roof height is a separate choice (H1 standard, H2 high, H3 super-high) and can be combined with most body lengths.
