You have a scheduled movement of goods or items, intend to drive, and park in areas with some restrictions, or simply consider getting a Ford van on your next car purchase. No matter the reason you may have, it might interest you to find out ford transit dimensions. This is a major concern among users and buyers of Ford vans. Insights on the height, length, and width of the Ford Transit can help you decide on the variant that will best meet your needs. The van with its no-nonsense load-handling ability and a wide spectrum of available body styles, positions it as the most versatile and practicable when compared to the competition.

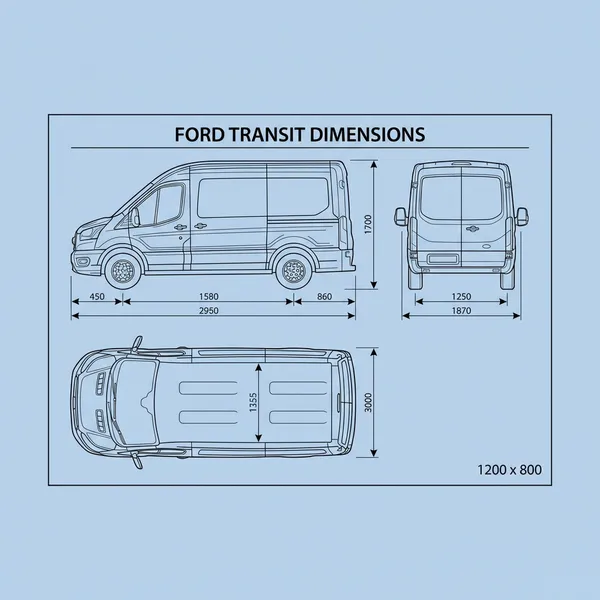

A Quick Overview of the Ford transit dimensions

The Ford Transit van with its rich history, spanning 50 years in major global automotive markets such as the U.S. and the U.K, has proven to be resilient despite the stiff competition in the crowded transit van segment. Among the rivals that have placed Ford on its toes include Mercedes, Citroen, Vauxhall, VW, and Renault.

The available range of models within the Ford Transit umbrella includes popular vans such as the Transit Connect, Transit Custom, and Transit Courier vans. These vans are also available in diverse configurations such as minibuses, crew cabs, panel vans, chassis cabs, and tipper trucks. All these will also come in different wheelbases and roof heights for your choosing. In fact, Ford points out that the buyer can order a truck in more than 450 different variations.

Nonetheless, the easiest way to order your Ford Transit van is in terms of the 3 different ford transit lwb dimensions lengths, namely L2, L3, and L4, in addition to two roof height options that include H2 and H3 and the wheel drive options that include front, rear, and four-wheel drives.

A Quick Overview of the Ford transit dimensions

Ford Transit has undergone tremendous improvements over the last few years, with the 2016 model boasting top-notch features such as the EcoBlue TDCI engines. These engines underwent some improvement in 2019, with respect to engine efficiency and the addition of the mild-hybrid option to some of the models. Tweaks to the bumper and grille, an upgrade of the infotainment, and the addition of active safety enhancements were noteworthy changes that came along with the 2019 facelift of the Ford Transit.

In terms of driving and performance, Transit is both reliable and comfortable.  It comes in three engine power options, with the choice of front, all-wheel, or rear-wheel drives. First off, is the 182bhp engine version that boasts excellent performance and flexibility, backed by a 415Nm of torque from a minor 1750 rpm. This is a desirable choice for its flexibility and exceptional refinement. It suits those that often approach the van’s payload capacity. Another option that is now popular with Ford’s passenger automobiles is the 168bhp variant, a reliable engine that allows the Transit to easily keep up with traffic flow.

The second engine variant for the Ford Transit is the 128bhp unit with the capability of delivering 385Nm maximum from 1500 rpm. It however works much harder under too much load. Nonetheless, it is ideal for most users. The final power option is the 104hp and 360Nm that works best around town. It will however struggle under large loads when on open roads.

Ford Transit Reliability and safety

The Ford Transit has been subjected to an intensive testing program to guarantee its reliability to buyers. Its EcoBlue engines have been proven to be reliable and durable outside the manufacturer’s program. Its advanced ESC stability control system with extra features tailored for commercial vehicles makes the Ford Transit van safe for use.

Ford Transit Reliability and safety

In addition to the ford transit connect dimensions are safety and convenience features in the Ford Transit such as the Side Wind Stabilization, Load Adaptive Roll Stability Control, and Curve Control Technology that ensure full control to the driver. Additionally, the van has Blind Spot Information System, Tire pressure monitoring assist, reversing camera, lane assist, Pre-collision assist, Intelligent Adaptive Cruise Control, Trailer Sway Control, airbags on front and side and Traffic Sign Recognition features for added safety and convenience.

Ford Transit Body Sizes

The Ford Transit panel van and the Ford Transit DCiV come in every body size, with the Transit boasting a more spacious load space. For ease of identification of the ford transit van dimensions, the body lengths of the Ford vans have been assigned the initial L and the body height H, just as the case is with other typical vans in the market.

Shorter Ford Transits are the L2 models that have a short wheelbase. The L3 Transit vans fall within the middle range category in terms of the length and the longest are the L4 variants. The L4 is also referred to as the EL or Extra-Large variants and these typically have a long wheelbase.

Ford Transit Interior Dimensions

The DCiV and the Ford Transit have different interior dimensions, with the front-wheel drive Transits boasting a bigger load capacity when compared to the rear-wheel drive and AWD Transits. DCiV Transits also come with a fixed bulkhead for passenger safety.

The Ford Transit has a maximum load capacity of 15.1 cubic meters, which is way lower when compared to its biggest rivals. Its interior dimensions are as follows:

Ford Transit van size L2H3 L2H2 L3H3 L3H2 L4H3
Max load length in mm 3044 3044 3494 3494 4217
Max load height FWD in mm 2125 1886 2125 1886 n/a
Max load height RWD/AWD in mm 2025 1786 2025 1786 2025
Max load width in mm 1784 1784 1784 1784 1784
Width between the wheel arches in mm 1392 1392 1392 1392 1154 to 1392
Max load volume FWD (cu m) 11.2 10.0 13.0 11.5 n/a
Max load volume RWD/AWD (cu m) 10.7 9.5 12.4 11.0 15.1

As for the DCiV Transit, its interior dimensions are as follows:

Ford Transit DCiV size L2H2 L2H3 L3H3 L3H2 L4H3
Max load length in mm 2038 2038 2488 2488 3211
Max load height FWD in mm 1886 2125 2125 1886 n/a
Max load height RWD/AWD in mm 1786 2025 2025 1786 2025
Max load width in mm 1784 1784 1784 1784 1784
Width between the wheel arches in mm 1392 1392 1392 1392 1154 to 1392
Max load volume FWD (cu m) 6.1 6.7 8.4 7.6 n/a
Max load volume RWD/AWD (cu m) 5.7 6.4 8.0 7.2 10.6

Ford Transit Exterior Dimensions

Ford Transit Exterior Dimensions

The exterior dimensions for the Ford Transit panel van and the DCiV are the same, except for their differences in size, being 1200mm side-door opening for DCiV and 1300mm for the panel van.

The outer dimensions of ford transit van are as follows:

Ford Transit van size L2H3 L2H2 L3H3 L3H2 L4H3
Length of Exterior in mm 5531 5531 5981 5981 6704
Height of Exterior FWD in mm 2652 to 2769 2413 to 2533 2676 to 2767 2411to 2530 n/a
Height of Exterior RWD/AWD in mm 2686 to 2771 2447 to 2534 2682 to 2769 2443 to 2533 2715 to 2778
Width of Exterior with mirrors in mm 2474 2474 2474 2474 2474
Width of Exterior with mirrors folded in mm 2112 2112 2112 2112 2112 to 2126
Wheelbase  3300 3300 3750 3750 3750

Payload and Gross Vehicle Weight for the Ford Transit

The GVW options for all 2.0-liter Ecoblue models as specified below:

2,900kg in For 290 series models
3,140kg For 310 series models




For 340 series models
3,500kg (or 3.5 tones or 3.5t)


For 350 series models (all Transit DCiVs fall within the 350 series category)


For 470 series models (only applicable to RWD L4H3 Transit vans)

Ford Transit Dimensions Takeaways

The ford transit custom dimensions are summarized below:

  • Internal load-space height-all rear-wheel drive and all-wheel drive models irrespective of the variant lose 10cm in load-space height. The H2 vans internal height is 1886mm and the H3 van is 2125mm.
  • Width-at its widest overall dimension, the Ford Transit measures 2474mm in width, which is the distance from the mirror to the mirror across all vans. Without mirrors, the width will be 2112mm. The van’s body without mirrors is 2059mm wide.
  • Interior load-space width-the Ford Transit van has a maximum interior load-space of 1784mm which is the standard width in all transit vans.
  • Length-L2 vans are 5531mm long, L3 5981mm and the L4 Transit vans 6704mm in length.
  • Internal Load-space length-for L2 van with a fixed bulkhead, the length of floor level is 3044mm. The L3 has a 3494mm length and L4 4217mm internal load-space length.
  • Width between wheel arches-the dimension between the wheels is 1392mm. The standard pallet will comfortably fit between the Ford Transit’s wheel arches. Smaller pallets are arranged side by side during transit.


The Ford Transit remains a popular choice across the U.K. and the U.S. It remains a sensible and practical van for jobs that require a van. Thanks to the desirable ford transit dimensions, this can have the capacity to handle larger load volumes and substantial payloads. It is also fuel efficient and the owners should anticipate significant savings. The interior dimension of the Ford Transit has had tremendous improvements allowing owners to enjoy a spacious and high-quality interior that can accommodate 3 adults easily. Some noteworthy safety features in the Ford Transit include ESP, Hill Start Assist, Electronic Dynamic Cornering Control, and Emergency Brake Warning, just to name a few.
